Description

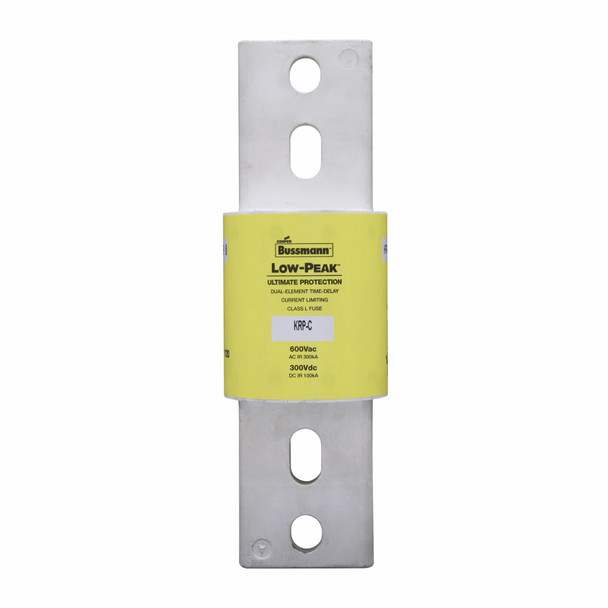

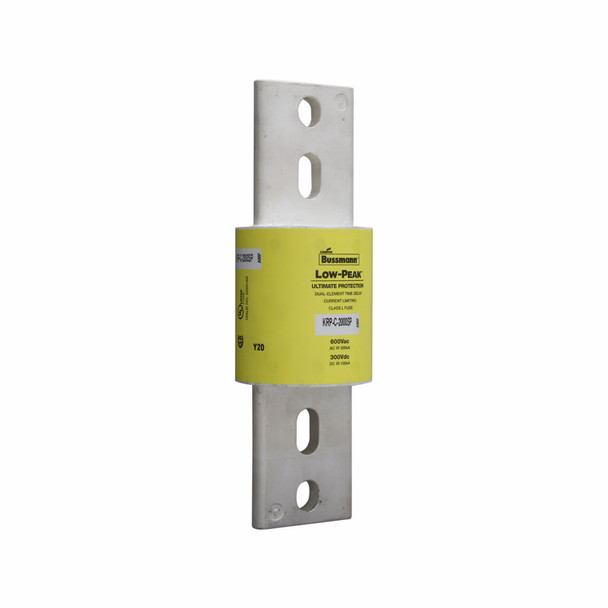

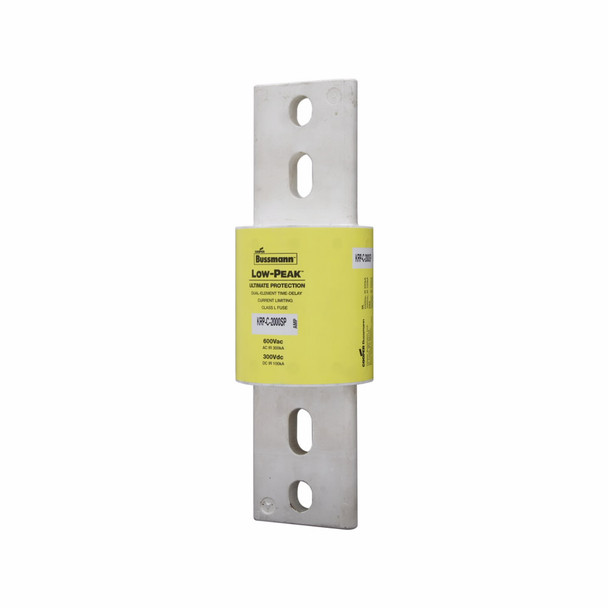

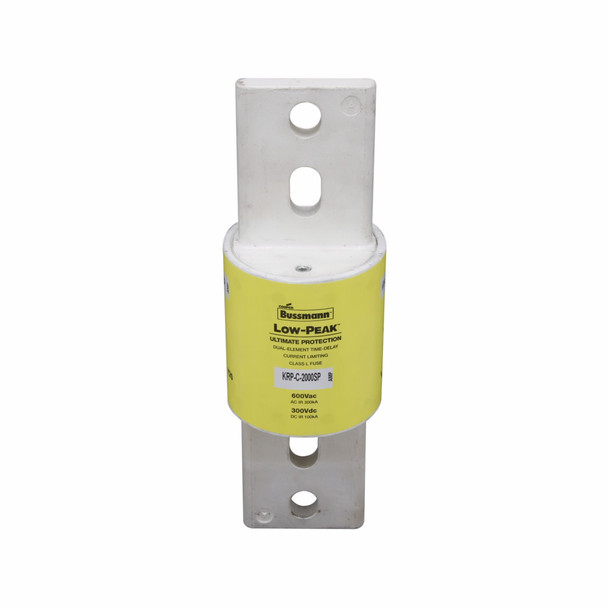

Bussmann KRP-C-2000SP Time Delay Fuse
Bussmann Low-Peak Fuse, Current Limiting Time Delay, Series: KRP-C, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 2000 A, 600 VAC/300 VDC, 300/100 kAIC Interrupt, Class: L, 4 s at 500% Response, Bolted Blade End Terminal, Bolted-On Mount, Cartridge Body, Dual Element, Melamine, 3-1/2 in Dia x 10-3/4 in L Body Size
Additional Description: BUSS-KRP-C-2000SP LOW-PEAK TIME-DELAY 300K
Catalog Description: Eaton Bussmann series KRP-C fuse, Current-limiting time-delay fuse, 2000 A, L, Non-indicating, Bolted blade end x bolted blade end, 4 sec at 500%, 300 kAIC at 600 V,100 kAIC Vdc, 600 V, 300 Vdc
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 2000 |
| Amperage Rating | 2000 A |
| Body Type | Cartridge |
| Class | L |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 300/100 |
| Interrupt Rating | 300/100 kAIC |
| Material | Melamine |
| Mounting type | Bolted-On |
| Mounting type | Bolt-On |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 4 |
| Response Time | 4 s at 500% |
| Series | KRP-C |
| Terminal Type | Bolted Blade End |
| Terminal Type | Knife Blade |
| Type | Current Limiting |
| Type | Current Limiting Time Delay |
| Voltage Rating | 600 VAC/300 VDC |
