Description

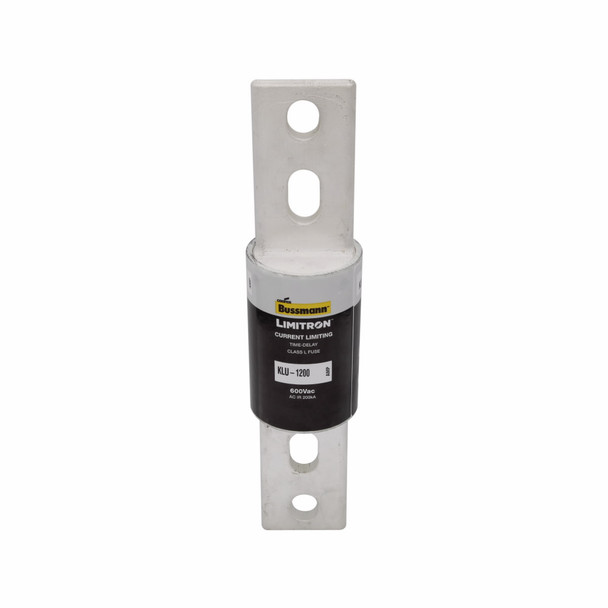

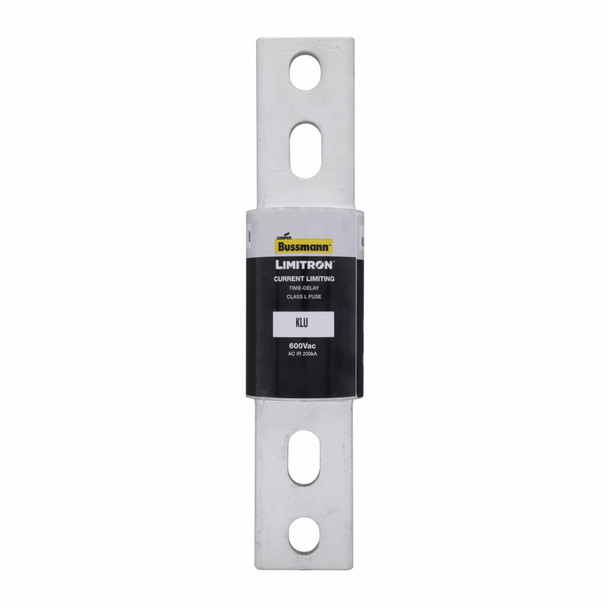

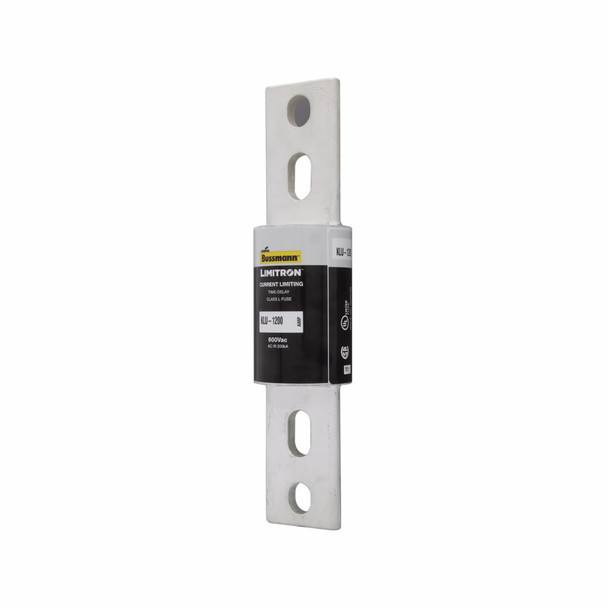

Bussmann KLU-1200
Bussmann Limitron Fuse, Current Limiting Time Delay, Series: KLU, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 1200 A, 600 V, 200 kAIC Interrupt, Class: L, 5 s at 500% Response, Bolted Blade End Terminal, Bolted-On Mount, Cartridge Body, Dual Element, Fiberglass/Melamine, 2-1/2 in Dia x 10-3/4 in L Body Size
Additional Description: BUSS-KLU-1200 LIMITRON TIME DELAY FUSE
Catalog Description: Eaton Bussmann series KLU fuse, 1200 A, Class L, Non-indicating, Bolted blade end x bolted blade end, 5 sec at 500%, 200 kAIC at 600 Vac, Bolt, Standard, 1, 600 V
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 1200 A |
| Body Type | Cartridge |
| Class | L |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 kAIC |
| Material | Fiberglass/Melamine |
| Mounting type | Bolted-On |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 5 s at 500% |
| Series | KLU |
| Terminal Type | Bolted Blade End |
| Type | Current Limiting Time Delay |
| Voltage Rating | 600 V |
