Description

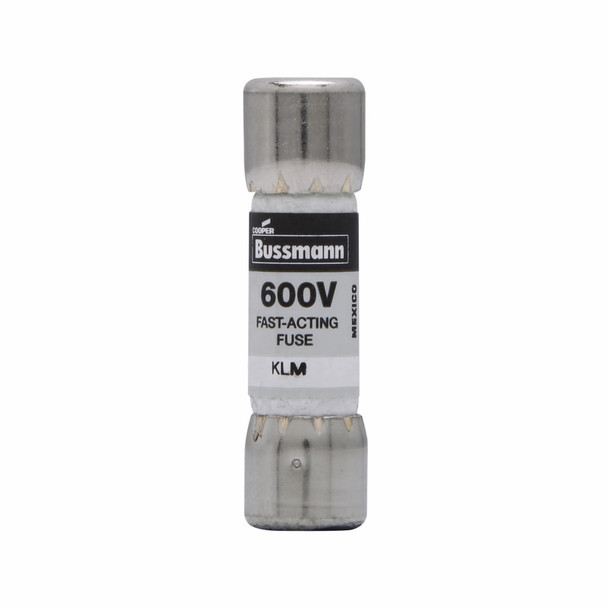

Bussmann KLM-3 Edison Midget Fuse
Bussmann Midget Fuse, Fast Acting, Series: KLM, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 3 A, 600 VAC/VDC, 100000 A AC/50000 A DC Interrupt, Class: Supplemental, Ferrule Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, Black, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-KLM-3 LIMITRON FAST ACTING FUSE
Catalog Description: Eaton Bussmann series KLM fuse, LIMITRON Fast-acting fuse, 3 A, Non-indicating, Ferrule end x ferrule end, 100 kAIC at 600 V,50 kAIC at 600 Vdc, Nickel-plated bronze endcap,Melamine tube, 600 V, 600 Vdc
Specifications
| UNSPSC | 39121609 |
|---|---|
| Amperage Rating | 3 A |
| Body Type | Cartridge |
| Class | CC/Supplemental |
| Class | Supplemental |
| Color | Black |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100/50 kA |
| Interrupt Rating | 100000 A AC/50000 A DC |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | KLM |
| Terminal Type | Ferrule |
| Type | Fast Acting |
| Voltage Rating | 600 VAC/VDC |
