Description

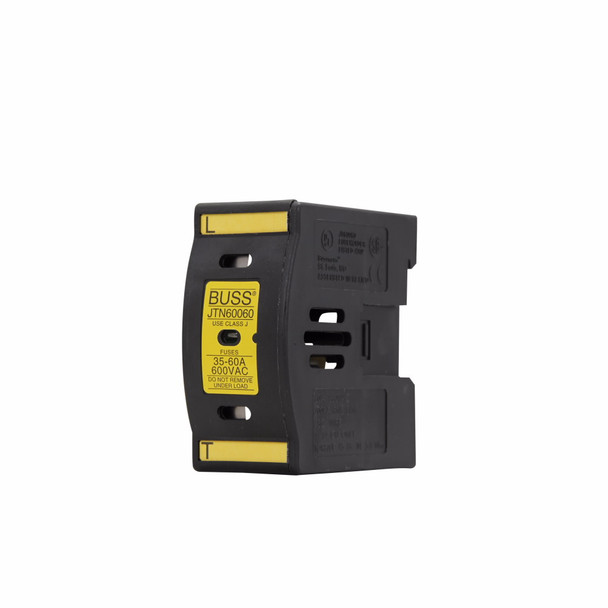

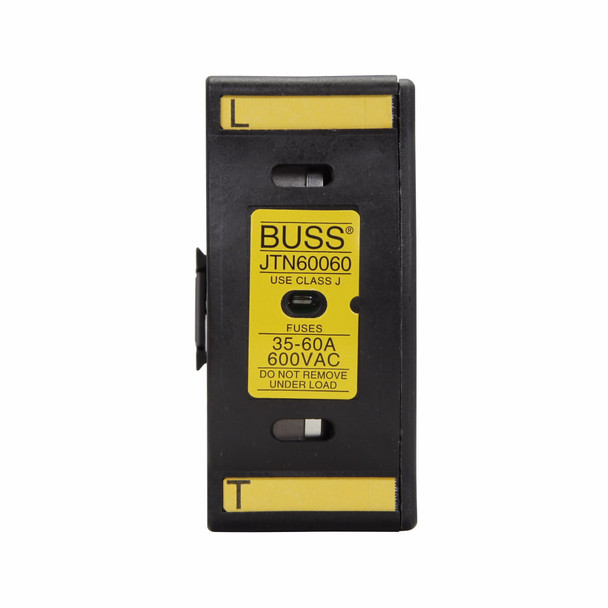

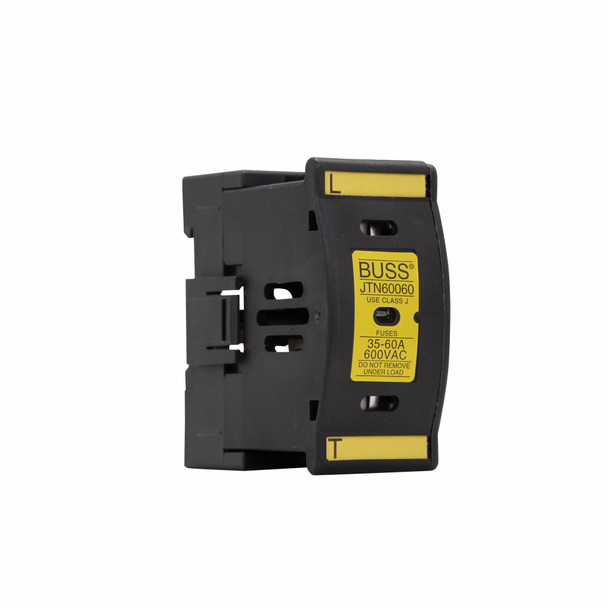

Bussmann JTN60060 Fuse Holder
Bussmann Fuse Holder, Finger Safe, Series: JT Series, 600 VAC, 60 A, 1 Pole, Class: J, Fuse Holder Code: AA, Box Lug, 14 to 4 AWG Wire, DIN Rail Mount, 2-1/4 in Fuse Length, 0.81 in Fuse Dia, 75 deg C, For Use with: LPJ, JKS Series Class J Non-Indicating Fuses, Thermoplastic, Black, 3.06 in L x 1.52 in W x 3.1 in H
Additional Description: BUSS-JTN60060 J' 60A TOUCHSAFE HOLDER
Catalog Description: Eaton Bussmann series JT finger-safe fuse holder, Indicating (neon), Industrial Controls, Process Controls, Small HP VFDs, 60 A, 75°C, 75°C, Class J, 14 - 4 AWG tin plated copper alloy terminal, Thermoplastic, 35 mm DIN rail, 600 V
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 60 A |
| Class | J |
| Color | Black |
| Connection type | Box Lug |
| Dimensions | 3.06 in L x 1.52 in W x 3.1 in H |
| Dimensions | 3.06 in L x 1.52 in W x 3.10 in H |
| Fuse Diameter | 0.81 |
| Fuse Diameter | 0.81 in |
| Fuse Diameter | 1.06 |
| Fuse Length | 2.38 |
| Fuse Length | 2-1/4 |
| Fuse Length | 2-1/4 in |
| Material | Thermoplastic |
| Mounting type | DIN Rail |
| Number of Poles | 1 |
| Series | JT Series |
| Suitable For Use With | LPJ, JKS Series Class J Fuses |
| Suitable For Use With | LPJ, JKS Series Class J Non-Indicating Fuses |
| Suitable For Use With | LPJ/JKS Series Class J Fuse |
| Temperature Rating (Degrees F) | 75 |
| Temperature Rating (Degrees F) | 75 deg C |
| Type | Finger Safe |
| Type | Finger Safe Touch-Safe |
| Type | Finger-Safe |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
| Wire Size | 14 to 4 |
| Wire Size | 14 to 4 AWG |
