Description

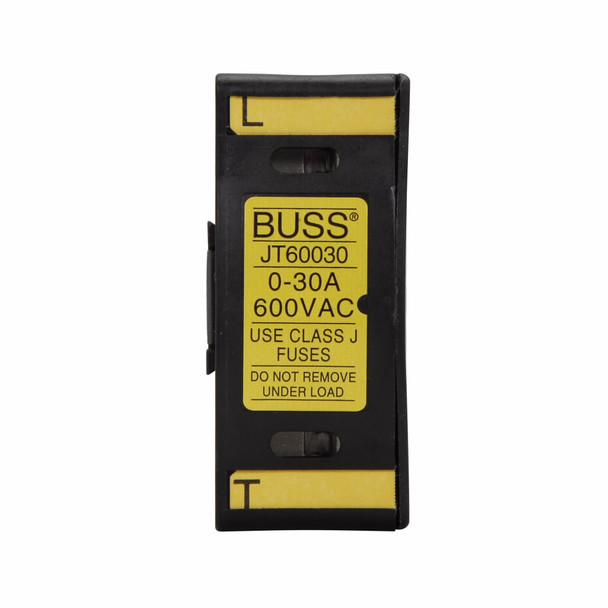

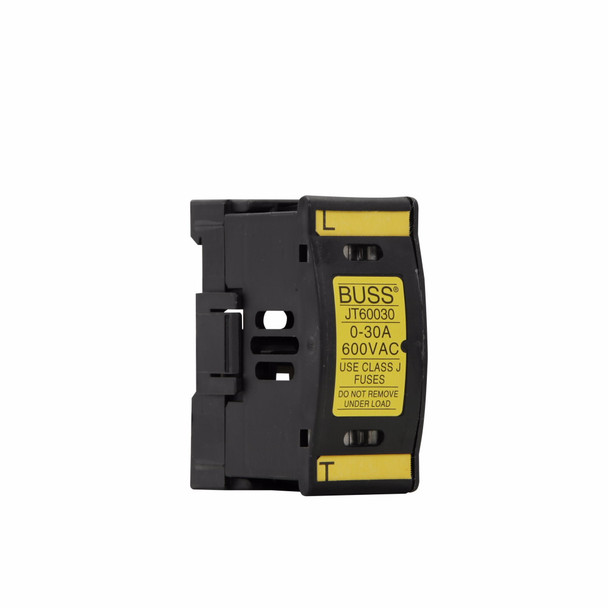

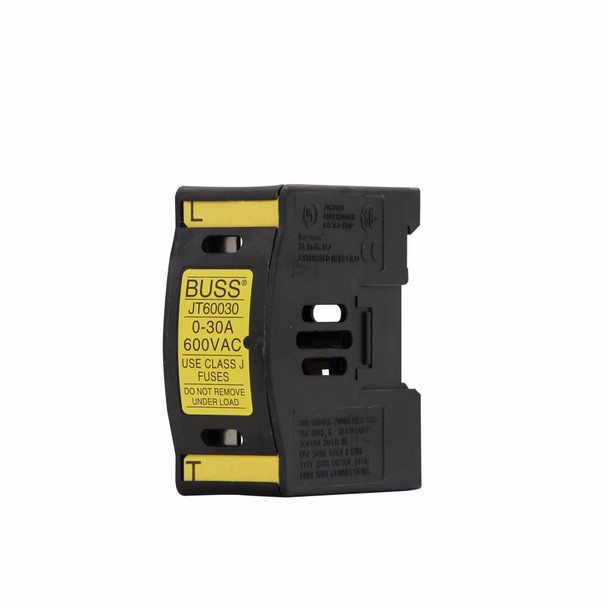

Bussmann JT60030 Fuse Holder
Bussmann Fuse Holder, Finger Safe, Series: JT, 600 V, 30 A, 1 Pole, Class: J, Fuse Holder Code: Z, Box Lug, 18 to 8 AWG Wire, DIN Rail Mount, 2-1/4 in Fuse Length, 0.81 in Fuse Dia, 75 deg C, For Use With: LPJ, JKS Series Class J Non-Indicating Fuses, Thermoplastic, Black, 2.52 in L x 1.23 in W x 2.75 in H
Additional Description: BUSS-JT60030 J 30A TOUCHSAFE HOLDER
Catalog Description: Eaton Bussmann series JT finger-safe fuse holder, Industrial Controls, Process Controls, Small HP VFDs, 30 A, Class J, 18 to 8 AWG tin plated copper alloy terminal, Thermoplastic, 35 mm DIN rail, 600 V
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Class | J |
| Color | Black |
| Connection type | Box Lug |
| Dimensions | 2.52 in L x 1.23 in W x 2.75 in H |
| Fuse Diameter | 0.81 |
| Fuse Diameter | 0.81 in |
| Fuse Length | 2-1/4 |
| Fuse Length | 2-1/4 in |
| Material | Thermoplastic |
| Mounting type | DIN Rail |
| Number of Poles | 1 |
| Number of Poles | 2 |
| Series | JT |
| Suitable For Use With | LPJ, JKS Series Class J Non-Indicating Fuses |
| Temperature Rating (Degrees F) | 75 |
| Temperature Rating (Degrees F) | 75 deg C |
| Type | Finger Safe |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | 18 to 8 |
| Wire Size | 18 to 8 AWG |
