Description

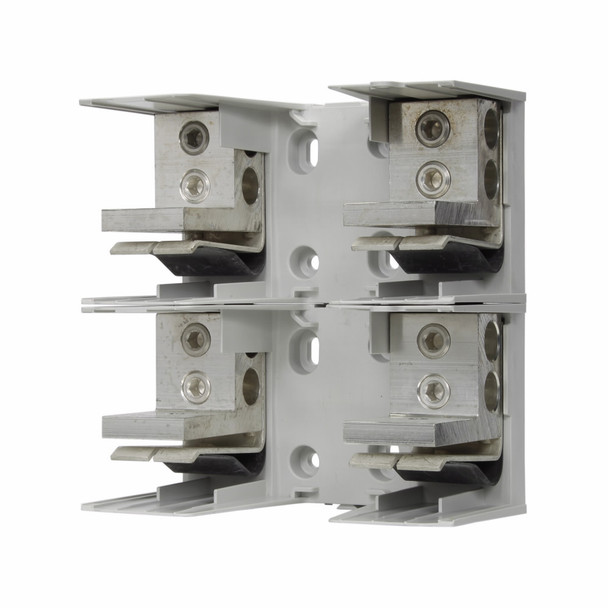

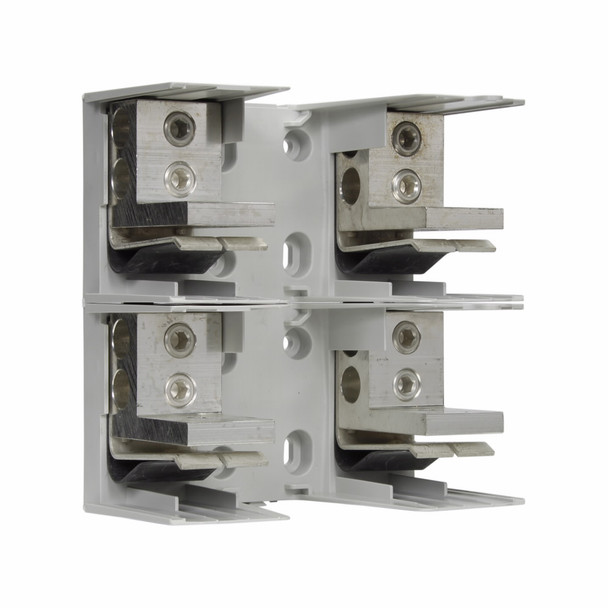

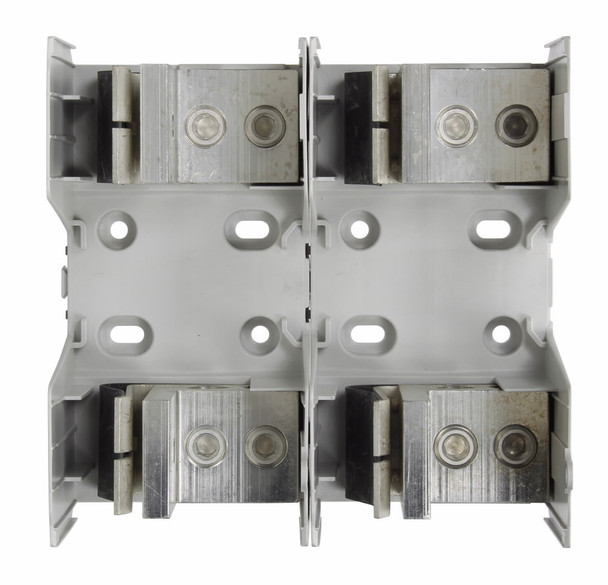

Bussmann JM60600-2CR Fuse Block
Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 450 to 600 A, 2 Pole, Class: J, Box Lug/Knife Blade End, 4 AWG to 500 kcmil Wire, -40 to 120 deg C, For Use With: Low-Peak LPJ-SP, LPJ-SPI Series Time Delay, Limitron JKS, DFJ Series Ferrule Fuse, Thermoplastic, 9.6 in W x 5.9 in D x 9.2 in H
Additional Description: BUSS-JM60600-2CR 600 amp class J fuse holder 600V 2 pole
Catalog Description: Eaton Bussmann series JM modular fuse block, CR, 450-600 A, Two-pole, Class J, Knife blade end x knife blade end, 200 kAIC, 600 V
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 450 to 600 |
| Amperage Rating | 450 to 600 A |
| Amperage Rating | 600 |
| Class | J |
| Connection type | Box Lug |
| Connection type | Box Lug/Knife Blade End |
| Dimensions | 9.2 in H x 9.6 in W x 5.9 in D |
| Dimensions | 9.5 in L x 9.3 in W x 6 in H |
| Dimensions | 9.6 in W x 5.9 in D x 9.2 in H |
| Material | Thermoplastic |
| Mounting type | Panel |
| Number of Poles | 2 |
| Series | JM Series |
| Suitable For Use With | Low-Peak LPJ-SP, LPJ-SPI Series Time Delay, Limitron JKS, DFJ Series Ferrule Fuse |
| Suitable For Use With | Low-Peak™ LPJ-SP, LPJ-SPI Series Time Delay, Limitron™ JKS, DFJ Series Ferrule Fuse |
| Suitable For Use With | LPJ-SP, LPJ-SPI, JKS, DFJ Series Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Knife Blade |
| Type | Knife-Blade |
| Type | Modular |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | (2) 4 AWG to 500 kcmil Solid |
| Wire Size | 4 AWG to 500 kcmil |
