Description

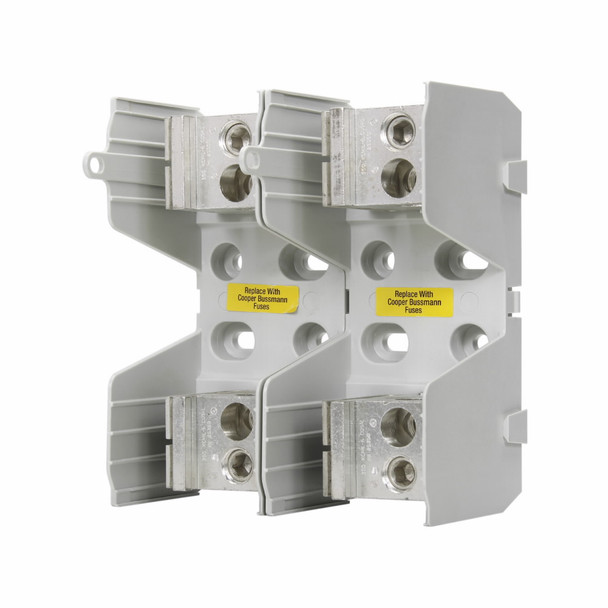

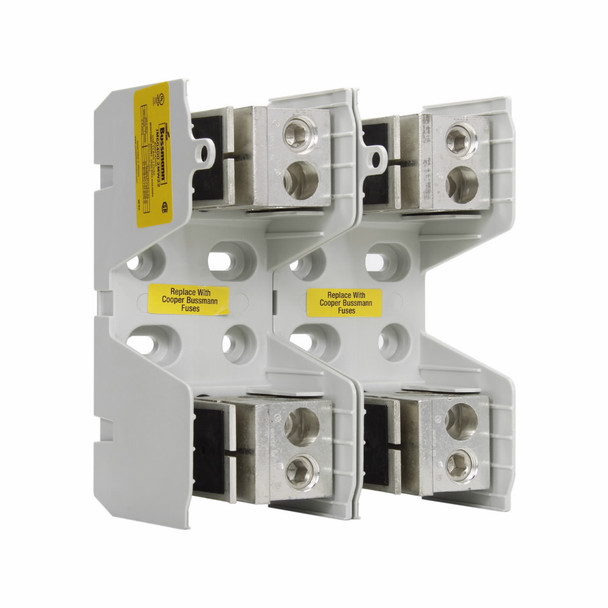

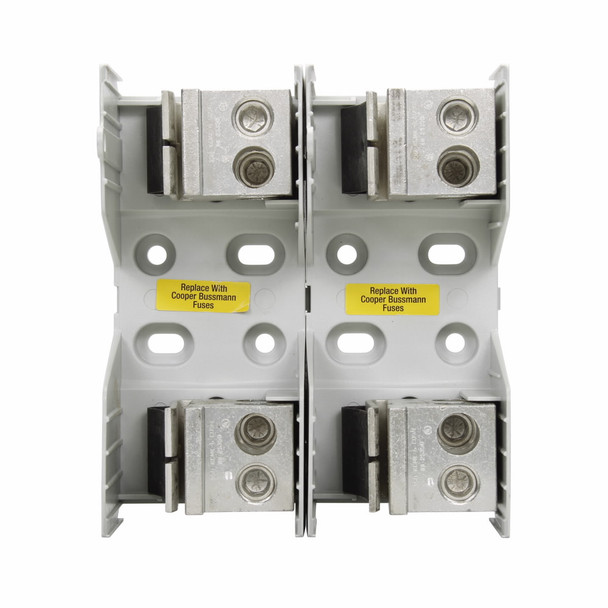

Bussmann JM60400-2MW16 Fuse Block
Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 225 to 400 A, 2 Pole, Class: J, Wired, 4 AWG to 600 kcmil, 14 to 2 AWG, 8 to 2 AWG, 14 to 8 AWG, 8 AWG Wire, DIN Rail/Panel Mount, -40 to 120 deg C, Thermoplastic, Gray, 8 in L x 4.8 in W x 3.5 in H
Additional Description: BUSS-JM60400-2MW16 CLASS J 600V 400A - FUSE BLOCK ASSY - 2
Catalog Description: Eaton Bussmann series JM modular fuse block, 600V, 225-400A, Two-pole, 16
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 225 to 400 |
| Amperage Rating | 225 to 400 A |
| Class | J |
| Color | Gray |
| Connection type | Wired |
| Dimensions | 8 in L x 4.8 in W x 3.5 in H |
| Material | Thermoplastic |
| Mounting type | DIN Rail/Panel |
| Number of Poles | 2 |
| Series | JM Series |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Modular |
| Type | Power Distribution |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | 4 AWG to 600 kcmil, 14 to 2 AWG, 8 to 2 AWG, 14 to 8 AWG, 8 AWG |
