Description

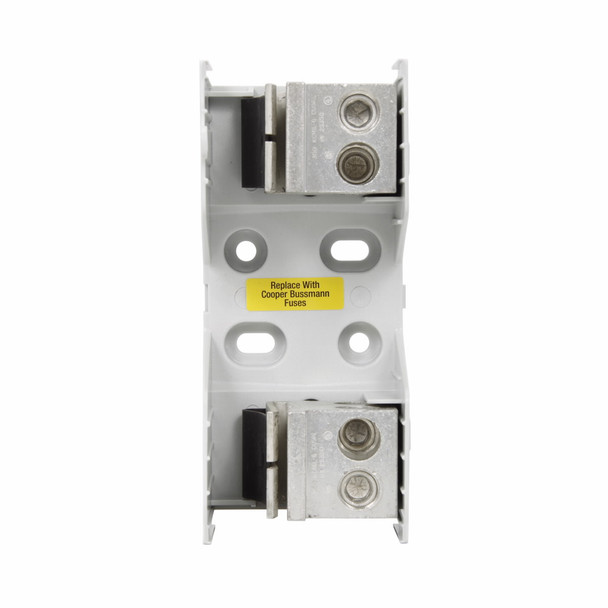

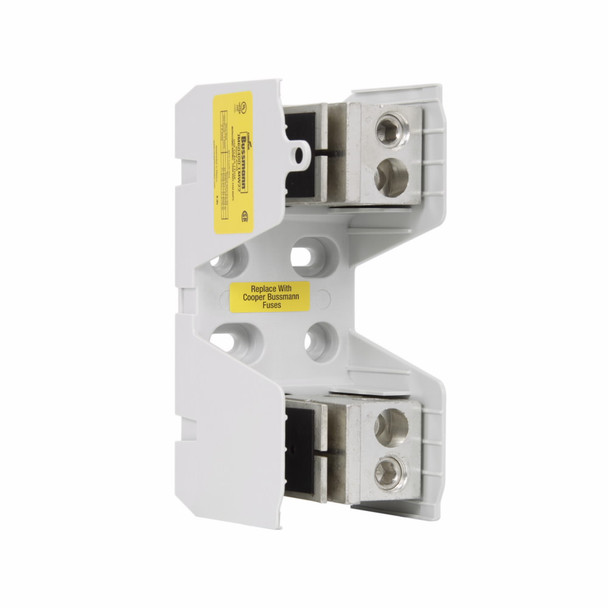

Bussmann JM60400-1MW22
Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 225 to 400 A, 1 Pole, Class: J, Knife Blade End, 4 to 3/0 AWG Wire, Hole Mount, -40 to 120 deg C, Thermoplastic
Additional Description: BUSS-JM60400-1MW22 Fuse Holder, Class-J 400A
Catalog Description: Eaton Bussmann series JM modular fuse block, 600V, 225-400A, Single-pole, 22
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 225 to 400 A |
| Class | J |
| Connection type | Knife Blade End |
| Material | Thermoplastic |
| Mounting type | Hole |
| Number of Poles | 1 |
| Series | JM Series |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Modular |
| Voltage Rating | 600 V |
| Wire Size | 4 to 3/0 AWG |
