Description

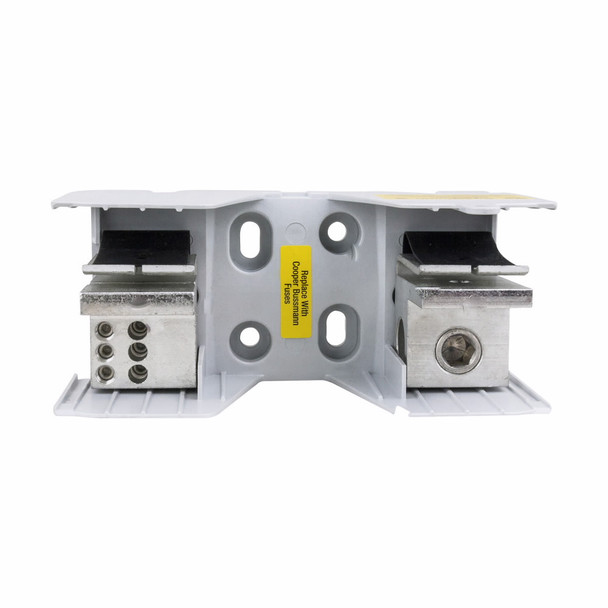

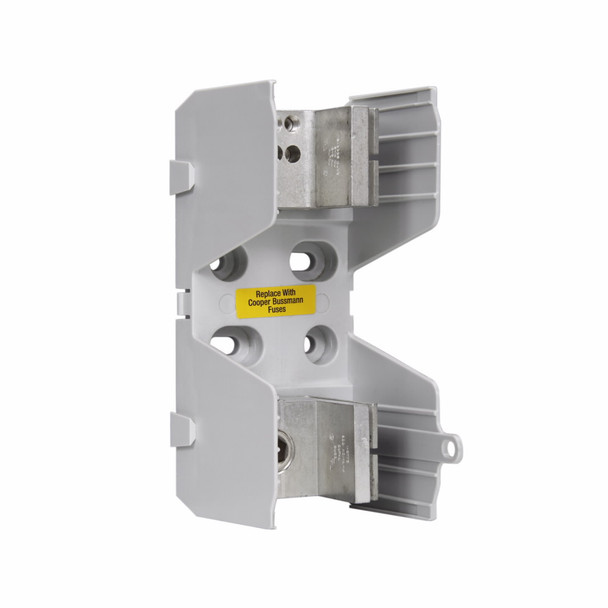

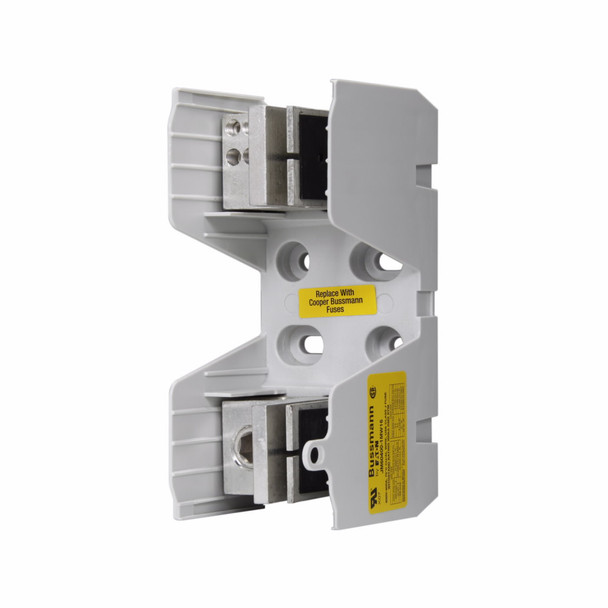

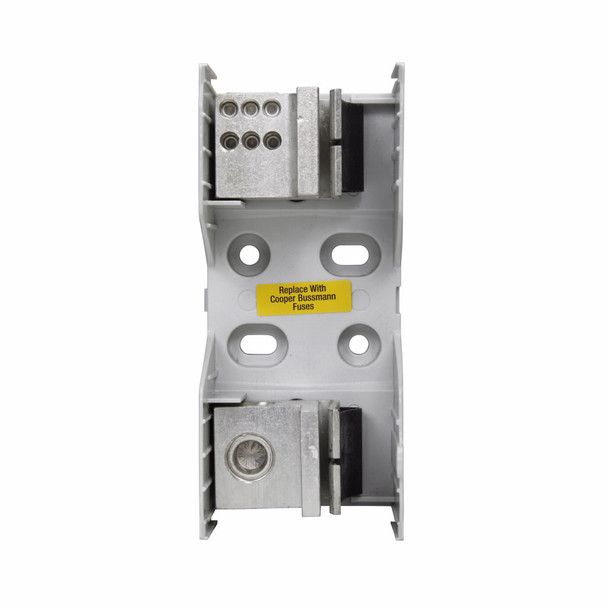

Bussmann JM60400-1MW16 Fuse Block
Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 225 to 400 A, 1 Pole, Class: J, (1) 4 AWG to 600 kcmil Cu/Al Line, (6) 14 to 2 AWG Cu, 8 to 2 AWG Al, (12) 14 to 8 AWG Cu, 8 AWG Al Load Wire, Surface Mount, -40 to 120 deg C, For Use With: Low-Peak Limitron DFJ Series Drive Cartridge Fuse, Thermoplastic, 8 in L x 3.5 in W x 4.8 in H
Additional Description: BUSS-JM60400-1MW16 CLASS J 600V 400A - FUSE BLOCK ASSY - 1
Catalog Description: Eaton Bussmann series JM modular fuse block, 600V, 225-400A, Single-pole, 16
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 225 to 400 |
| Amperage Rating | 225 to 400 A |
| Class | J |
| Color | Gray |
| Connection type | Lug |
| Dimensions | 8 in L x 3.5 in W x 4.8 in H |
| Fuse Diameter | 2 |
| Fuse Length | 7.13 |
| Material | Thermoplastic |
| Mounting type | Panel |
| Mounting type | Surface |
| Number of Poles | 1 |
| Series | JM Series |
| Series | JM600 |
| Suitable For Use With | Low-Peak Limitron DFJ Series Drive Cartridge Fuse |
| Suitable For Use With | Low-Peak™ Limitron™ DFJ Series Drive Cartridge Fuse |
| Suitable For Use With | Low-Peak™ LPJ, Limitron™ JKS and DFJ Knife Blade Fuse |
| Suitable For Use With | Low-Peak™, Limitron™ and DFJ Drive Cartridge Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Modular |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | (1) 4 AWG to 600 kcmil Cu/Al Line, (6) 14 to 2 AWG Cu, 8 to 2 AWG Al, (12) 14 to 8 AWG Cu, 8 AWG Al Load |
| Wire Size | 4 AWG to 600 kcmil |
