Description

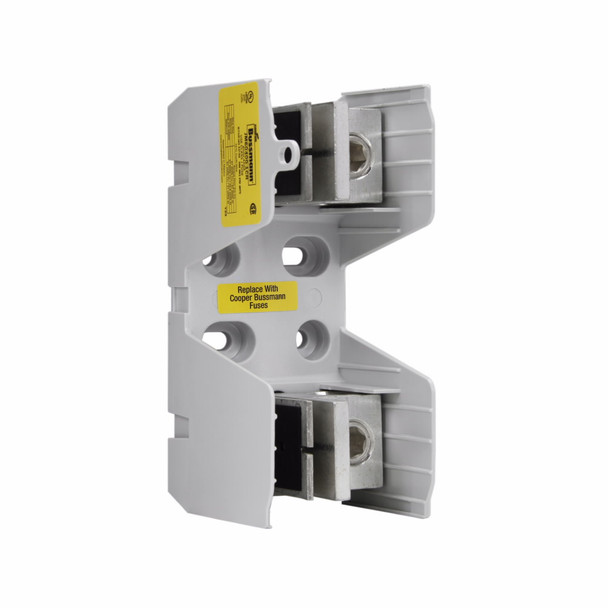

Bussmann JM60400-1CR Fuse Block
Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 225 to 400 A, 1 Pole, Class: J, Knife Blade End, 600 kcmil, (2) 4 to 3/0 AWG Al Solid/Stranded Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 8.7 in L x 3.5 in W x 4.9 in H
Additional Description: BUSS-JM60400-1CR FUSE HOLDER
Catalog Description: Eaton Bussmann series JM modular fuse block, CR, 225-400 A, Single-pole, Class J, Knife blade end x knife blade end, 200 kAIC, 600 V
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 225 to 400 |
| Amperage Rating | 225 to 400 A |
| Amperage Rating | 400 |
| Class | J |
| Connection type | Knife Blade End |
| Dimensions | 7.9 in L x 3.6 in W |
| Dimensions | 8.7 in L x 3.5 in W x 4.9 in H |
| Material | Thermoplastic |
| Mounting type | DIN Rail/Panel |
| Mounting type | Hole |
| Number of Poles | 1 |
| Series | JM Series |
| Suitable For Use With | Knife Blade Cartridge Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Knife Blade |
| Type | Modular |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | 600 |
| Wire Size | 600 kcmil, (2) 4 to 3/0 AWG Al Solid/Stranded |
| Wire Size | 600 kcmil, 4 to 3/0 AWG |
