Description

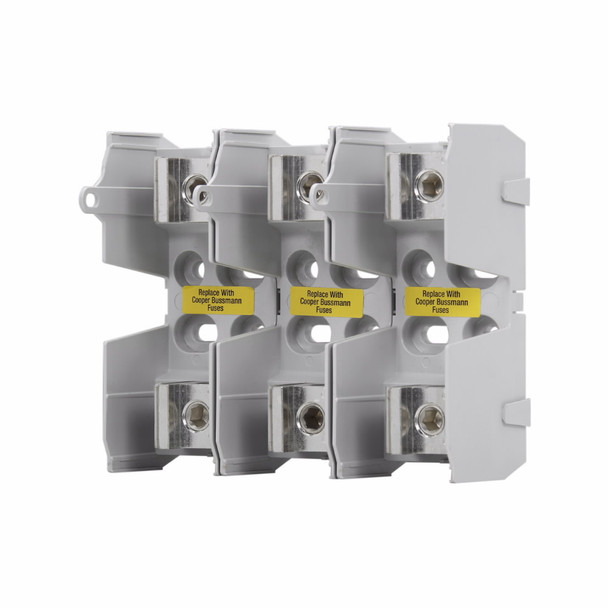

Bussmann JM60200-3CR Fuse Block
Bussmann Fuse Block, 600 VAC, 110 to 200 A, 3 Poles, Class: J, 1 to 3/0 AWG, 6 to 2 AWG, 1 AWG to 200 kcmil Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 7.3 in L x 7.9 in W x 3.8 in H
Additional Description: BUSS-JM60200-3CR 200 amp class J fuse holder 600V 3 pole 3 pol
Catalog Description: Eaton Bussmann series JM modular fuse block, CR, 110-200 A, Three-pole, Class J, 200 kA, Knife blade end x knife blade end, 200 kAIC, 600 V
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 110 to 200 |
| Amperage Rating | 110 to 200 A |
| Class | J |
| Connection type | Box Lug |
| Dimensions | 6.8 in L x 7.9 in W x 3.8 in H |
| Dimensions | 7.3 in L x 7.9 in W x 3.8 in H |
| Fuse Diameter | 1.63 |
| Fuse Length | 5-3/4 |
| Material | Thermoplastic |
| Mounting type | Hole |
| Mounting type | Panel |
| Number of Poles | 3 |
| Series | JM600 |
| Suitable For Use With | Knife Blade Cartridge Fuse |
| Suitable For Use With | Low-Peak™ LPJ, Limitron™ JKS and DFJ Knife Blade Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
| Wire Size | 1 to 3/0 AWG, 6 to 2 AWG, 1 AWG to 200 kcmil |
| Wire Size | 6 AWG to 250 kcmil, 2 to 6 AWG |
