Description

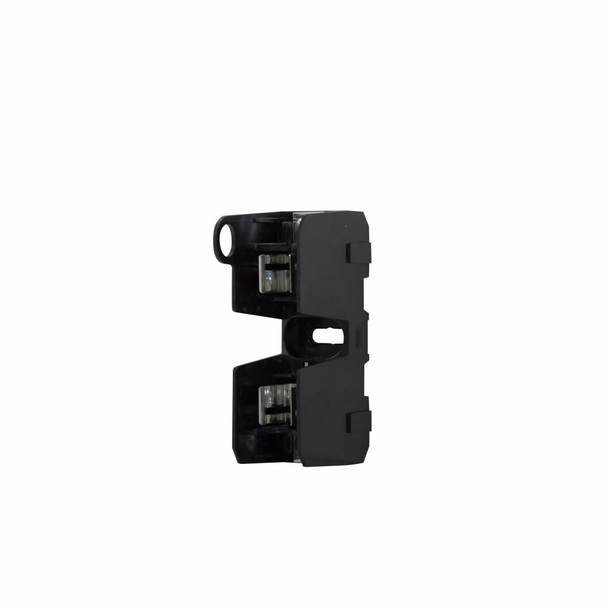

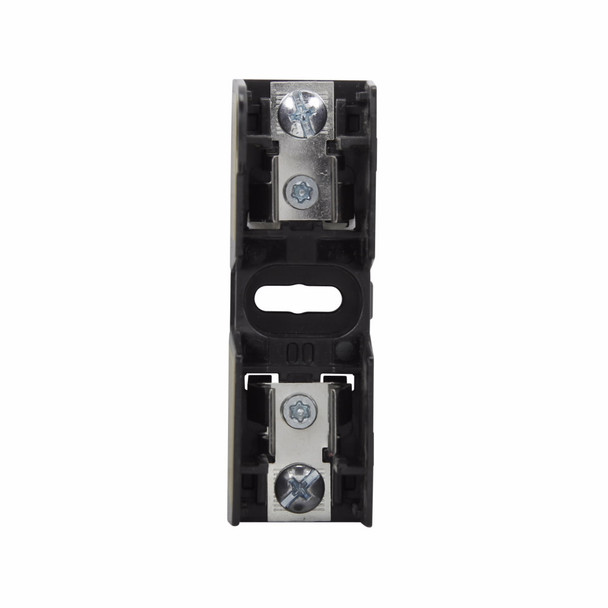

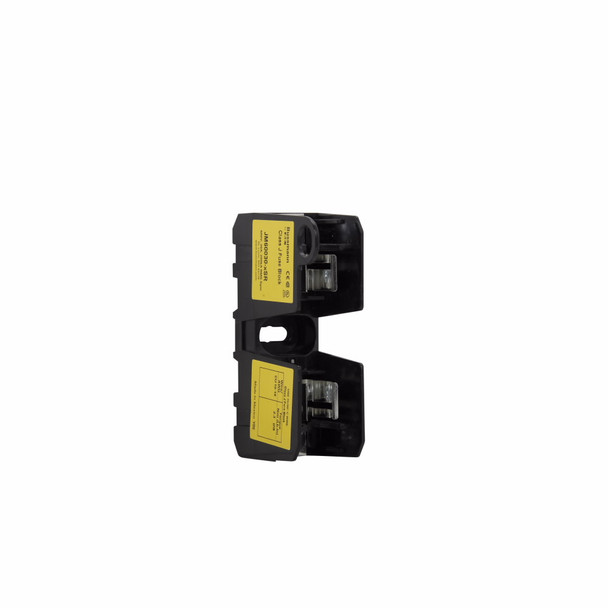

Bussmann JM60030-1SR Fuse Block
Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 0 to 30 A, 1 Pole, Class: J, Phillips Slot Screw, 32 to 10 AWG Wire, DIN Rail Mount, -40 to 120 deg C, For Use With: Low-Peak LPJ Series Time Delay Fuse, Thermoplastic, 4.3 in L x 1.1 in H
Additional Description: BUSS-JM60030-1SR Class J fuse block 600V 30A Screw 1 pole
Catalog Description: Eaton Bussmann series JM modular fuse block, 0-30 A, Single-pole, Class J, Philslot screws/pressure plate, 200 kAIC, 600 V
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 0 to 30 A |
| Amperage Rating | 0.1 to 30 |
| Class | J |
| Connection type | Philips Slot Screw |
| Connection type | Phillips Slot Screw |
| Connection type | Phillips® Slot Screw |
| Dimensions | 4.3 in L x 1.1 in H |
| Material | Thermoplastic |
| Mounting type | DIN Rail |
| Number of Poles | 1 |
| Series | JM Series |
| Suitable For Use With | Low-Peak LPJ Series Time Delay Fuse |
| Suitable For Use With | Low-Peak® LPJ Time Delay Fuse |
| Suitable For Use With | Low-Peak™ LPJ Series Time Delay Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Ferrule Modular |
| Type | Modular |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | 32 to 10 |
| Wire Size | 32 to 10 AWG |
