Description

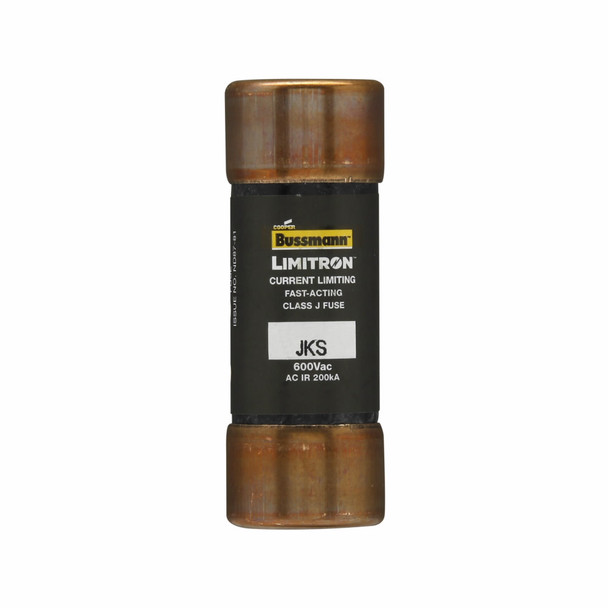

Bussmann JKS-5 Fast Acting Fuse
Bussmann Limitron Fuse, Current Limiting Fast Acting, Series: JKS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 5 A, 600 V, 200 kAIC Interrupt, Class: J, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 0.81 in Dia x 2.25 in L Body Size
Additional Description: BUSS-JKS-5 LIMITRON FAST ACTING FUSE CLASS J
Catalog Description: Eaton Bussmann series JKS fuse, LIMITRON Fast-acting fuse, Power panelboards, machinery disconnects, 5 A, 1, Class J, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 600 Vac, Standard, 10, 600 V
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 5 |
| Amperage Rating | 5 A |
| Body Type | Cylindrical |
| Class | J |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kAIC |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | JKS |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | Current Limiting |
| Type | Current Limiting Fast Acting |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
