Description

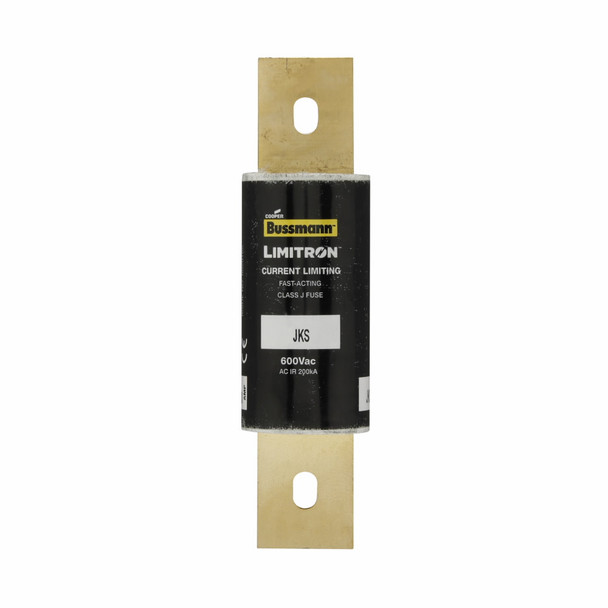

Bussmann JKS-175 Fast Acting Fuse
Bussmann Limitron Fuse, Current Limiting Fast Acting, Series: JKS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 175 A, 600 V, 200 kAIC Interrupt, Class: J, Bolted Blade End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 1-1/2 in Dia x 5-3/4 in L Body Size
Additional Description: BUSS-JKS-175 LIMITRON FAST ACTING FUSE CLASS J
Catalog Description: Eaton Bussmann series JKS fuse, Power panelboards, Machinery disconnects, 175 A, 1, Class J, Non-indicating, Bolted blade end x bolted blade end, 200 kAIC at 600 Vac, Standard, 1, 600 V
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 175 |
| Amperage Rating | 175 A |
| Body Type | Cartridge |
| Class | J |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kAIC |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | JKS |
| Terminal Type | Bolted Blade End |
| Terminal Type | Knife Blade |
| Type | Current Limiting |
| Type | Current Limiting Fast Acting |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
