Description

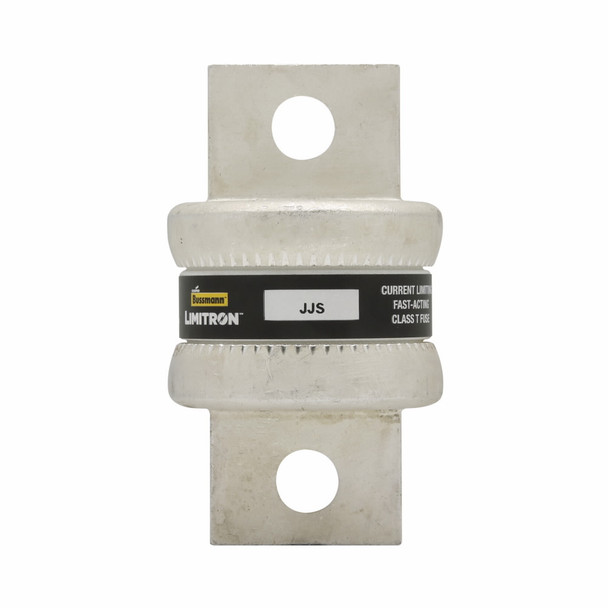

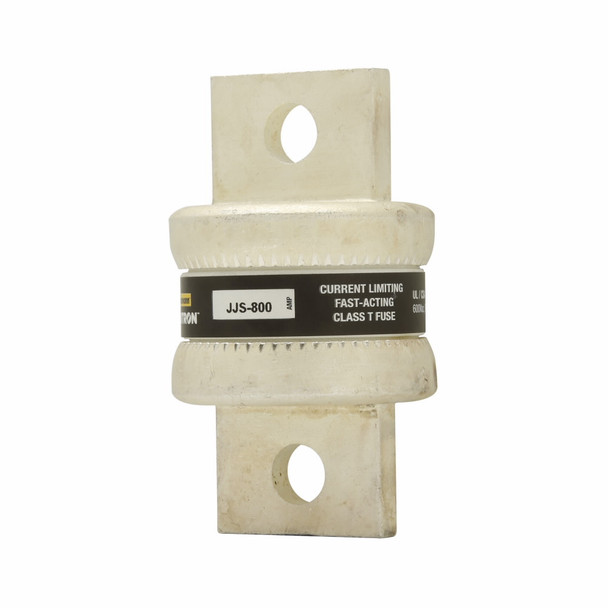

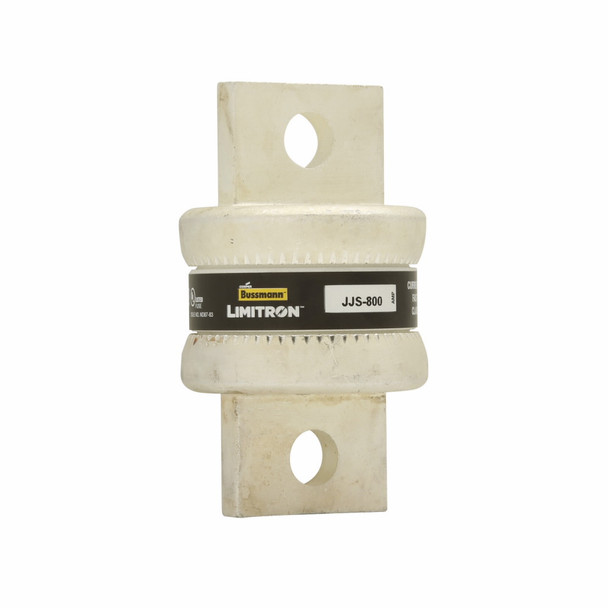

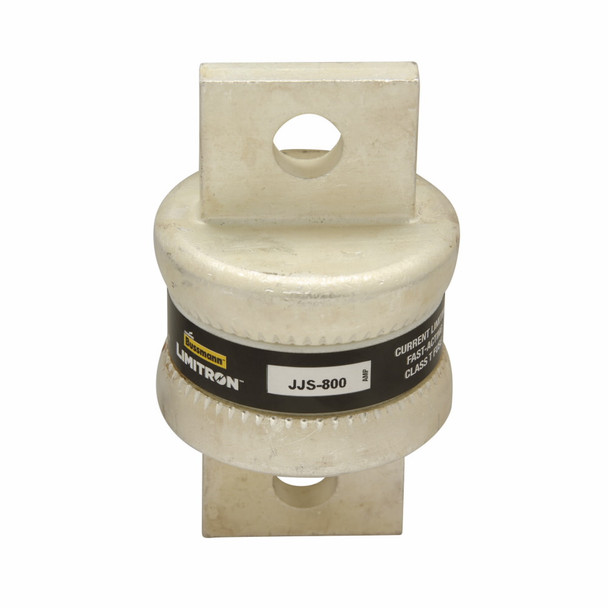

Bussmann JJS-800 Fast Acting Fuse
Bussmann Limitron Tron Fuse, Current Limiting Very Fast Acting, Series: JJS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 800 A, 600 V, 200 kAIC Interrupt, Class: T, Bolted Blade End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 1.75 in Dia x 4.33 in L Body Size
Additional Description: BUSS-JJS-800 TRON FAST ACTING FUSE
Catalog Description: Eaton Bussmann series JJS fuse, Current-limiting very fast acting fuse, Small footprint, VFD line protection, 800 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 200 kAIC at 600 V, Standard, 1, 600 V
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 800 |
| Amperage Rating | 800 A |
| Body Type | Cartridge |
| Class | T |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kAIC |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | JJS |
| Terminal Type | Blade |
| Terminal Type | Bolted Blade End |
| Type | Current Limiting |
| Type | Current Limiting Very Fast Acting |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
