Description

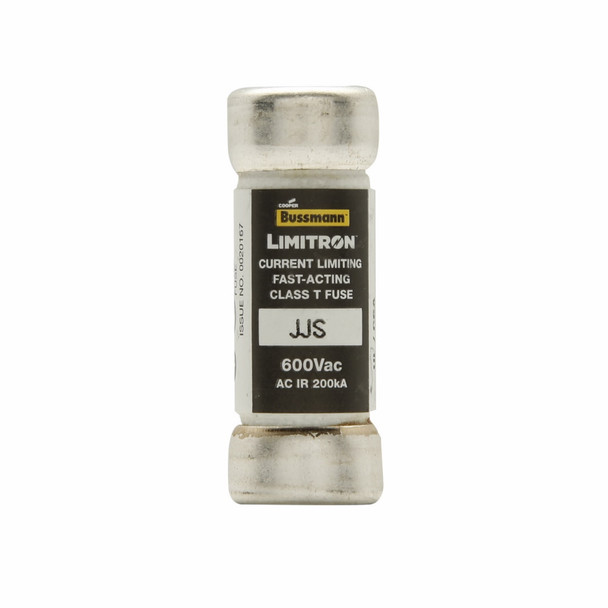

Bussmann JJS-2 Fast Acting Fuse
Bussmann Limitron Fuse, Fast Acting Current Limiting, Series: JJS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 2 A, 600 VAC, 200 kA Interrupt, Class: T, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 0.56 in Dia x 1.5 in L Body Size
Additional Description: BUSS-JJS-2 TRON FAST ACTING FUSE CLASS T
Catalog Description: Eaton Bussmann series JJS fuse, Current-limiting very fast acting fuse, Small footprint, Large apartment complexes, multi-family meter stacks, VFD line protection, 2 A, Class T, Non-indicating, 200 kAIC at 600 Vac, Standard, 10, 600 V
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 2 |
| Amperage Rating | 2 A |
| Body Type | Cylindrical |
| Class | T |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | JJS |
| Terminal Type | Ferrule |
| Type | Current Limiting |
| Type | Fast Acting Current Limiting |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
