Description

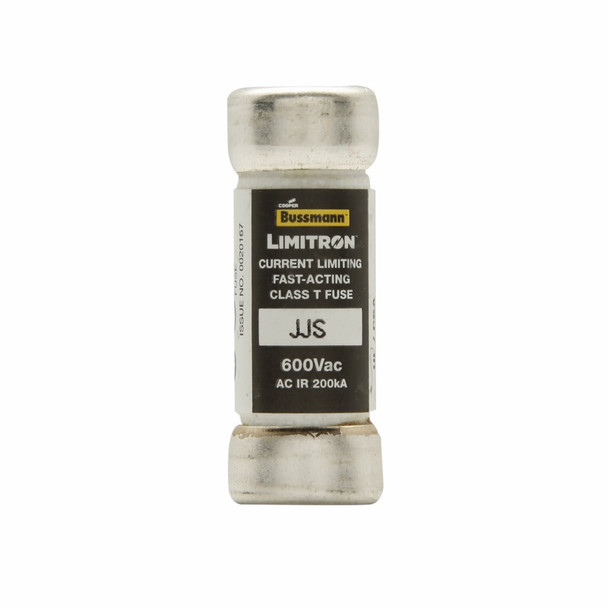

Bussmann JJS-10 Fast Acting Fuse
Bussmann Limitron Tron Fuse, Current Limiting Very Fast Acting, Series: JJS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 10 A, 600 V, 200 kAIC Interrupt, Class: T, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 0.56 in Dia x 1.5 in L Body Size
Additional Description: BUSS-JJS-10 TRON FAST ACTING FUSE CLASS T
Catalog Description: Eaton Bussmann series JJS fuse, Current-limiting, Small footprint, VFD line protection, 10 A, Class T, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 600 V, Standard, 10, 600 V
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 10 A |
| Body Type | Cylindrical |
| Class | T |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 kAIC |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | JJS |
| Terminal Type | Ferrule End |
| Type | Current Limiting Very Fast Acting |
| Voltage Rating | 600 V |
