Description

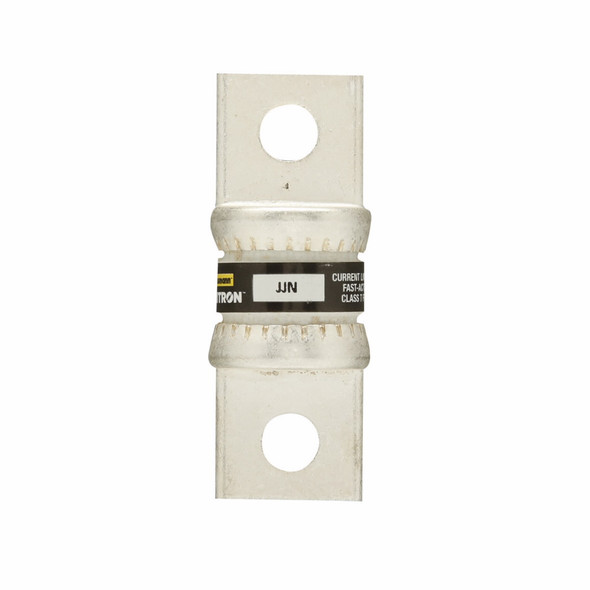

Bussmann JJN-500
Bussmann Limitron T-Tron Fuse, Current Limiting Very Fast Acting, Series: JJN, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 500 A, 300 VAC/160 VDC, 200/20 kAIC Interrupt, Class: T, Bolted Blade End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 1.25 in Dia x 3.06 in L Body Size
Additional Description: BUSS-JJN-500 TRON FAST ACTING FUSE
Catalog Description: Eaton Bussmann series JJN fuse, Current-limiting very fast acting fuse, VFD line protection, 500 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 200 kAIC at 300 V,20 kAIC at 160 Vdc, Standard, 1, 300 V, 160 Vdc
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 500 A |
| Body Type | Cartridge |
| Class | T |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200/20 kAIC |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | JJN |
| Terminal Type | Bolted Blade End |
| Type | Current Limiting Very Fast Acting |
| Voltage Rating | 300 VAC/160 VDC |
