Description

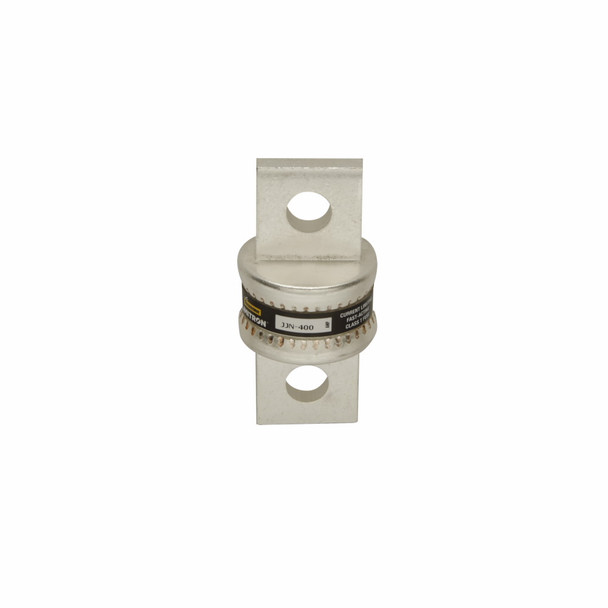

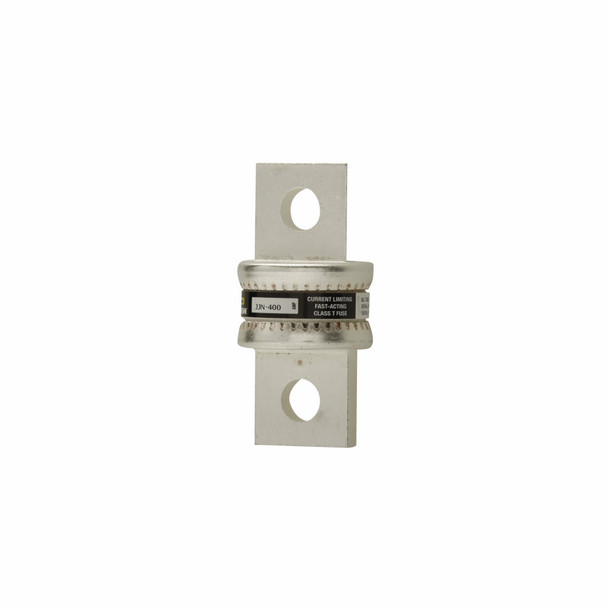

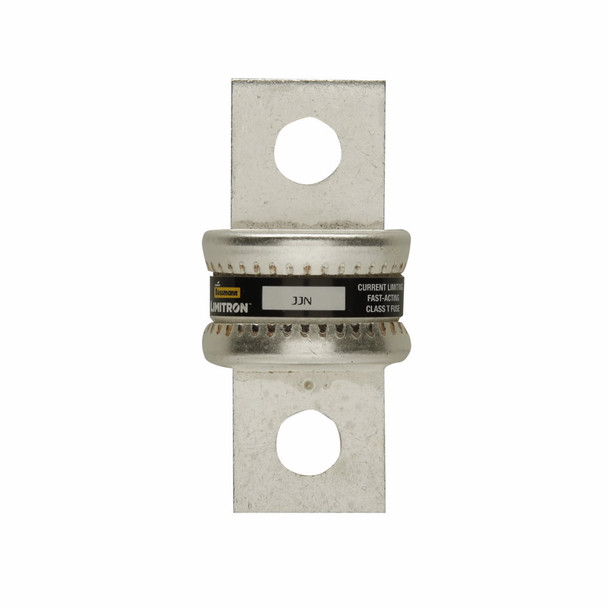

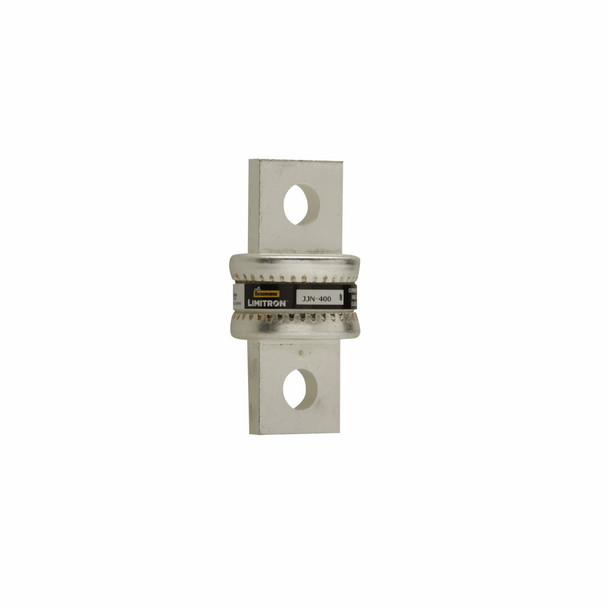

Bussmann JJN-350
Bussmann Limitron™ T-Tron® Fuse, Current Limiting Very Fast Acting, Series: JJN, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 350 A, 300 VAC/160 VDC, 200/20 kAIC Interrupt, Class: T, Bolted Blade End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 1 in Dia x 2-3/4 in L Body Size
Additional Description: BUSS-JJN-350 TRON FAST ACTING FUSE
Catalog Description: Eaton Bussmann series JJN fuse, Current-limiting very fast acting fuse, VFD line protection, 350 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 20 kAIC at 160 Vdc,200 kAIC at 300 V, Standard, 1, 300 V, 160 Vdc
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 350 A |
| Body Type | Cartridge |
| Class | T |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200/20 kAIC |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | JJN |
| Terminal Type | Bolted Blade End |
| Type | Current Limiting Very Fast Acting |
| Voltage Rating | 300 VAC/160 VDC |
