Description

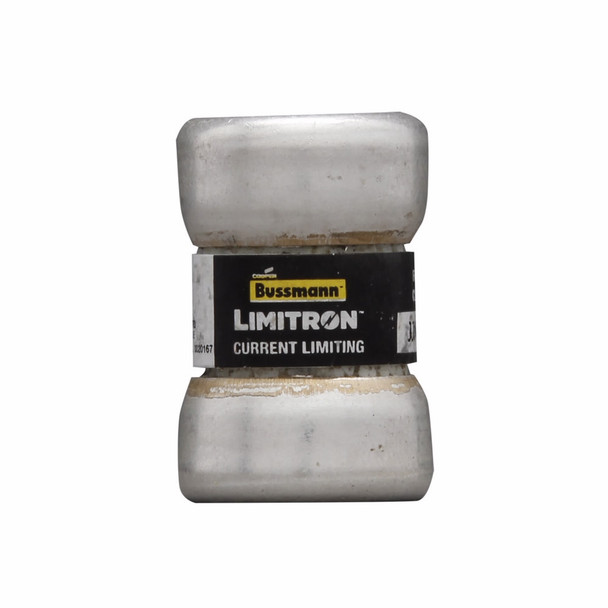

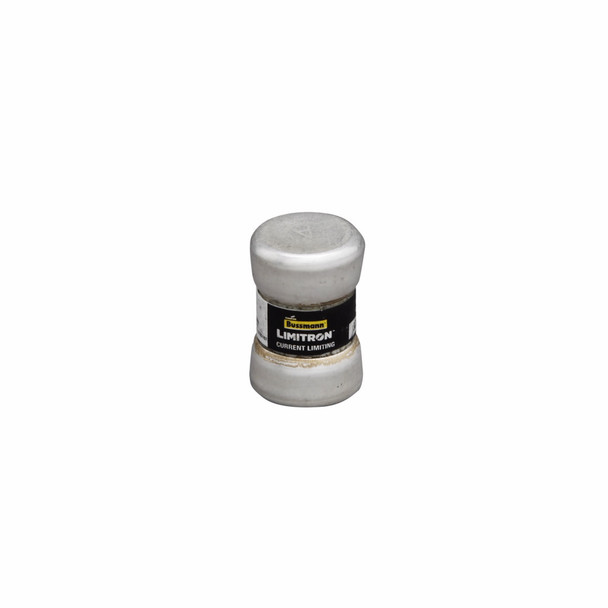

Bussmann JJN-35 T-Fast Acting Fuse
Bussmann Limitron T-Tron Fuse, Current Limiting Very Fast Acting, Series: JJN, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 35 A, 300 VAC/160 VDC, 200/20 kAIC Interrupt, Class: T, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 0.56 in Dia x 0.88 in L Body Size
Additional Description: BUSS-JJN-35 TRON FAST ACTING FUSE
Catalog Description: Eaton Bussmann series JJN fuse, Current-limiting very fast acting fuse, VFD line protection, 35 A, Class T, Non-indicating, Ferrule end x ferrule end, 20 kAIC at 160 Vdc,200 kAIC at 300 V, Standard, 10, 300 V, 160 Vdc
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 35 |
| Amperage Rating | 35 A |
| Body Type | Cylindrical |
| Class | T |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200/20 |
| Interrupt Rating | 200/20 kAIC |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | JJN |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | Current Limiting |
| Type | Current Limiting Very Fast Acting |
| Voltage Rating | 300 VAC/160 VDC |
