Description

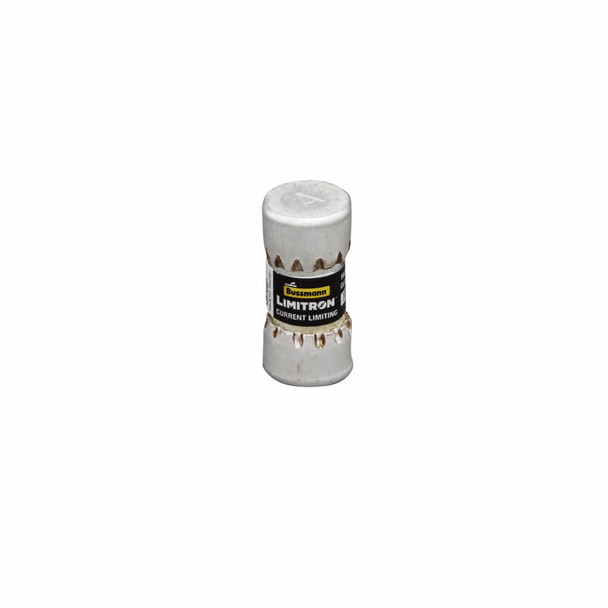

Bussmann JJN-20 T-Fast Acting Fuse
Bussmann T-Tron Fuse, Fast Acting Current Limiting, Series: JJN, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 20 A, 300 VAC/160 VDC, 20/200 kA Interrupt, Class: T, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 0.41 in Dia x 0.88 in L Body Size
Additional Description: BUSS-JJN-20 TRON FAST ACTING FUSE CLASS T
Catalog Description: Eaton Bussmann series JJN fuse, Current-limiting very fast acting fuse, VFD line protection, 20 A, Class T, Non-indicating, Ferrule end x ferrule end, 20 kAIC at 160 Vdc,200 kAIC at 300 V, Standard, 10, 300 V, 160 Vdc
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 20 |
| Amperage Rating | 20 A |
| Body Type | Cylindrical |
| Class | T |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 20/200 kA |
| Interrupt Rating | 200/20 |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | JJN |
| Terminal Type | Ferrule |
| Type | Current Limiting |
| Type | Fast Acting Current Limiting |
| Voltage Rating | 300 VAC/160 VDC |
