Description

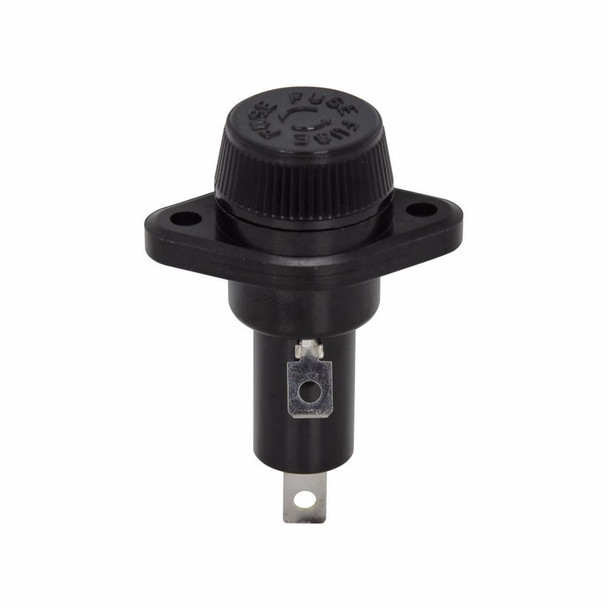

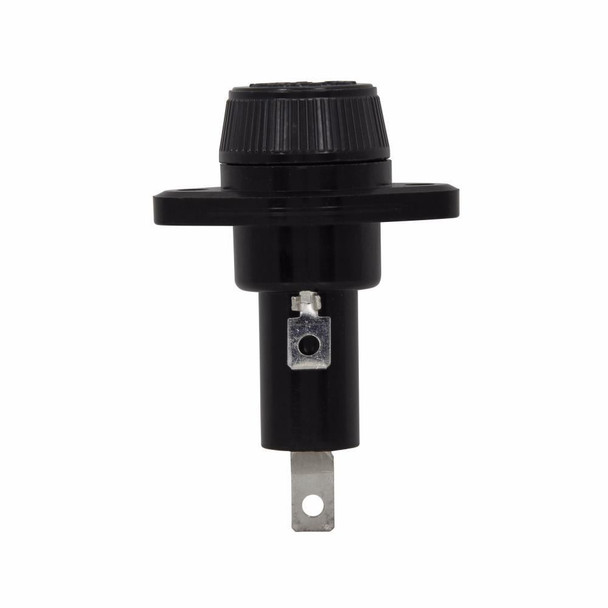

Bussmann HPF-JJ Fuse Holder
Bussmann Fuse Holder, Standard, Series: HPF, 600 V, 20 A, Class: J, 1/2 in Quick Connect Terminal, Panel Mount, 1-5/8 in Fuse Length, 13/32 in Fuse Dia, For Use With: 13/32 x 1-5/8 in A Fuse, SC Series 20 A Fuse, Black, 1.78 in Dia x 2.69 in L
Additional Description: BUSS-HPF-JJ (N) BUSS FUSEHOLDER NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series HPF panel mount fuse holder, Branch circuit protection, 20 A, 1/2 inches quick connect terminal, Panel, 600 V
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 20 |
| Amperage Rating | 20 A |
| Class | J |
| Color | Black |
| Connection type | 1/2 in Quick Connect Terminal |
| Connection type | 1/2 in Quick Connect/Solder |
| Connection type | Quick-Connect |
| Dimensions | 1.78 in Dia x 2.69 in L |
| Fuse Diameter | 13/32 |
| Fuse Diameter | 13/32 in |
| Fuse Length | 1-5/8 |
| Fuse Length | 1-5/8 in |
| Material | Thermoplastic |
| Mounting type | Panel |
| Number of Poles | 1 |
| Series | HPF |
| Suitable For Use With | 13/32 x 1-5/8 in A Fuse, SC Series 20 A Fuse |
| Suitable For Use With | SC 20, 13/32 in x 1-5/8 in Fuses |
| Suitable For Use With | SC Series Fuse |
| Type | Standard |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
