Description

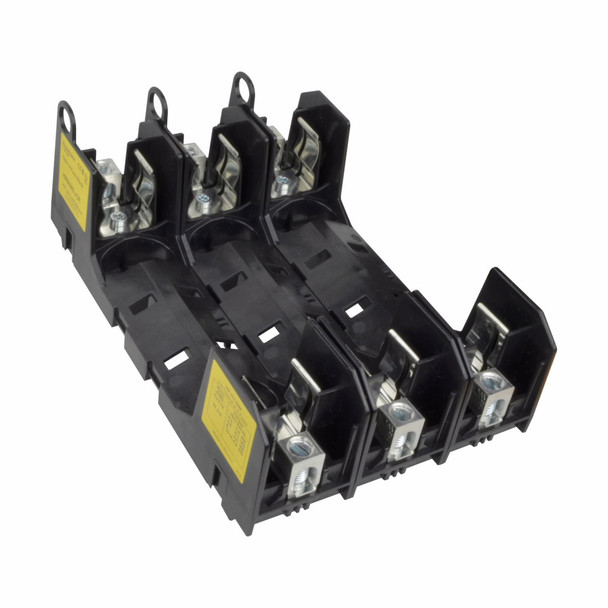

Bussmann HM60060-3CR Fuse Block
Bussmann Fuse Block, Modular, Series: HM Series, 600 V, 35 to 60 A, 3 Pole, Class: H/K, Fuse Holder Code: Q, Box Lug, 14 to 2 AWG Cu, 8 to 2 AWG Al Wire, DIN Rail/Panel Mount, 5-1/2 in Fuse Length, 1.06 in Fuse Dia, -40 to 120 deg C, For Use With: NOS Series Fuse, Thermoplastic, 6.8 in L x 4.5 in W x 2.6 in H
Additional Description: BUSS-HM60060-3CR (D) Fuse Block, Class H, 600V 60A, 3 Pole
Catalog Description: Eaton Bussmann series HM modular fuse block, 600V, 35-60A, Three-pole
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 35 to 60 A |
| Class | H |
| Class | H/K |
| Connection type | Box Lug |
| Dimensions | 6.8 in L x 4.5 in W x 2.6 in H |
| Fuse Diameter | 1.06 |
| Fuse Diameter | 1.06 in |
| Fuse Length | 5-1/2 |
| Fuse Length | 5-1/2 in |
| Material | Thermoplastic |
| Mounting type | DIN Rail/Panel |
| Number of Poles | 3 |
| Series | HM Series |
| Series | HM600 |
| Suitable For Use With | NOS Series Ferrule Fuse |
| Suitable For Use With | NOS Series Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Modular |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | 14 to 2 AWG Cu, 8 to 2 AWG Al |
| Wire Size | 14 to 2 AWG, 8 to 2 AWG |
