Description

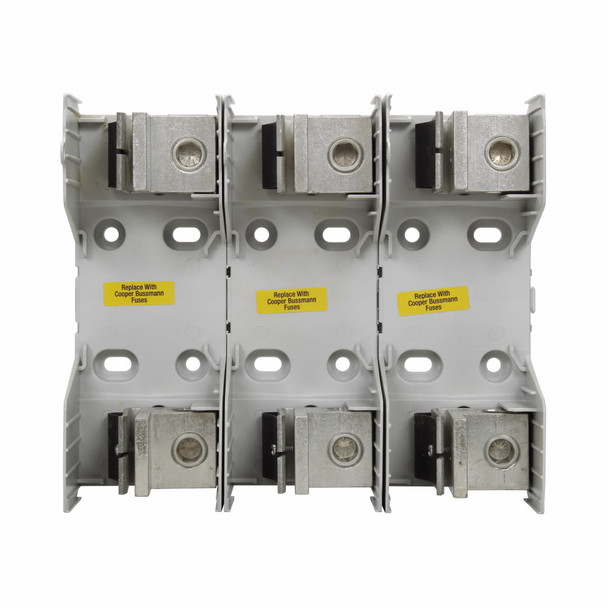

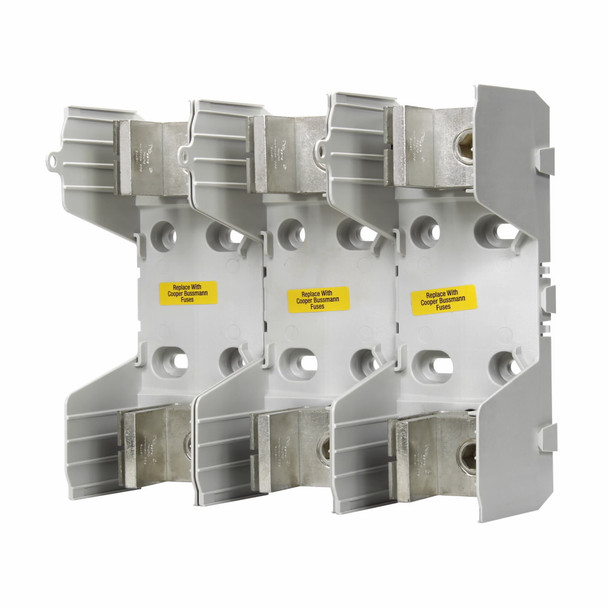

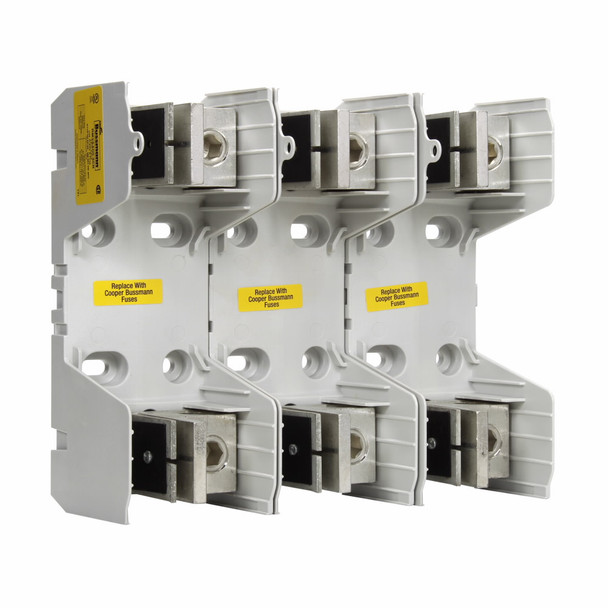

Bussmann HM25400-3CR Modular Fuse Block
Bussmann Fuse Block, Modular, Series: HM Series, 250 V, 225 to 400 A, 3 Pole, Class: H/K, Fuse Holder Code: N, Box Lug, 4 AWG to 600 kcmil Wire, Panel Mount, 8.63 in Fuse Length, 2.06/2.38 in Fuse Dia, -40 to 120 deg C, For Use With: NON Series Fuse, Thermoplastic, 10.1 in L x 10.9 in W x 4.8 in H
Additional Description: BUSS-HM25400-3CR FUSE HOLDER
Catalog Description: Eaton Bussmann series HM modular fuse block, 250V, 225-400A, Three-pole
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 225 to 400 |
| Amperage Rating | 225 to 400 A |
| Amperage Rating | 400 |
| Class | H |
| Class | H/K |
| Connection type | Box Lug |
| Dimensions | 10.1 in L x 10.9 in W x 4.8 in H |
| Dimensions | 10.9 in L x 9.5 in W x 4.8 in H |
| Fuse Diameter | 2.06/2.38 |
| Fuse Diameter | 2.06/2.38 in |
| Fuse Length | 8.63 |
| Fuse Length | 8.63 in |
| Material | Thermoplastic |
| Mounting type | Panel |
| Number of Poles | 3 |
| Series | HM Series |
| Series | HM250 |
| Suitable For Use With | NON Series Fuse |
| Suitable For Use With | NON Series Knife Blade Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Knife-Blade |
| Type | Modular |
| Voltage Rating | 250 |
| Voltage Rating | 250 V |
| Wire Size | 4 AWG to 600 kcmil |
| Wire Size | 600 kcmil, 4 AWG to 500 kcmil, (2) 4 to 3/0 Cu AWG, (2) 4 to 3/0 AWG Al Solid |
