Description

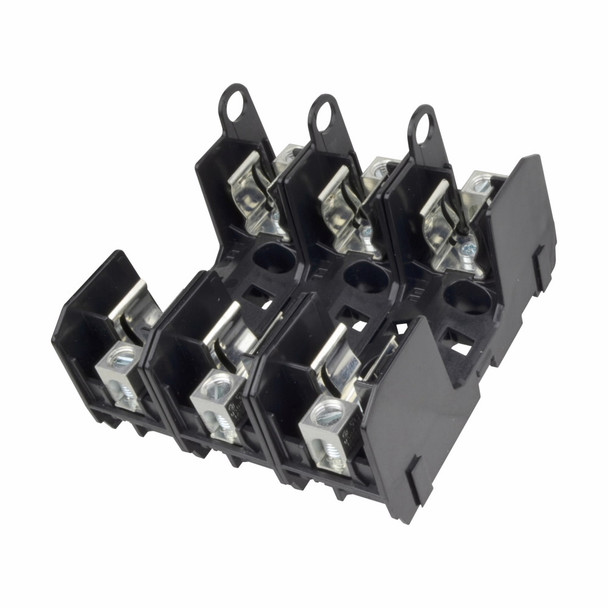

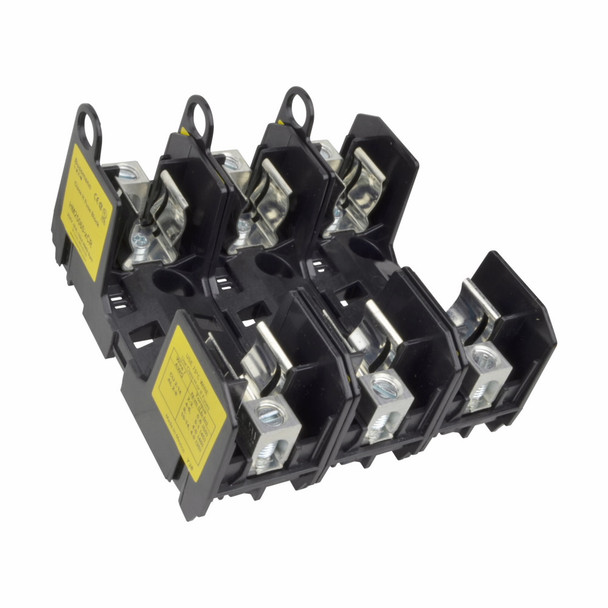

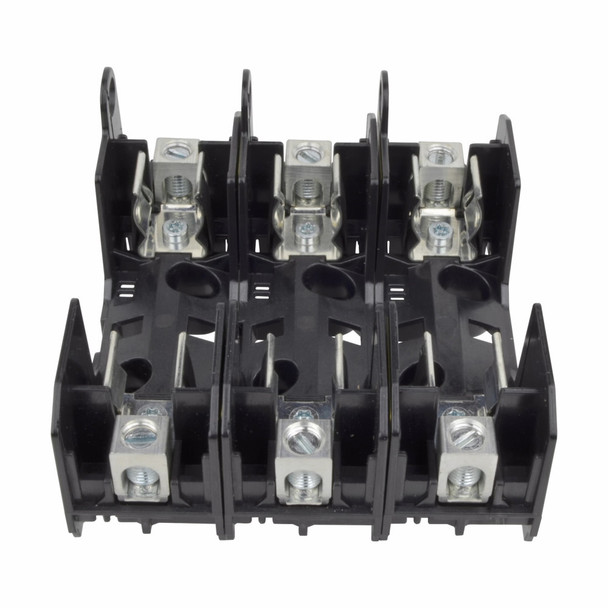

Bussmann HM25060-3CR Fuse Block
Bussmann Fuse Block, Modular, Series: HM Series, 250 V, 35 to 60 A, 3 Pole, Class: H/K, Box Lug, DIN Rail Mount, -40 to 120 deg C, For Use With: NON, NOS Series Fuse, Thermoplastic, 4.2 in L x 4 in H
Additional Description: BUSS-HM25060-3CR Fuse Block, Class H, 250V 60A, 3 Pole
Catalog Description: Eaton Bussmann series HM modular fuse block, 250V, 35-60A, Three-pole
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 31 to 60 |
| Amperage Rating | 35 to 60 A |
| Class | H |
| Class | H/K |
| Connection type | Box Lug |
| Dimensions | 4.2 in L x 4 in H |
| Material | Thermoplastic |
| Mounting type | DIN Rail |
| Number of Poles | 3 |
| Series | HM Series |
| Suitable For Use With | Midget Fuse |
| Suitable For Use With | NON and NOS Fuse |
| Suitable For Use With | NON, NOS Series Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Ferrule Modular |
| Type | Modular |
| Voltage Rating | 250 |
| Voltage Rating | 250 V |
