Description

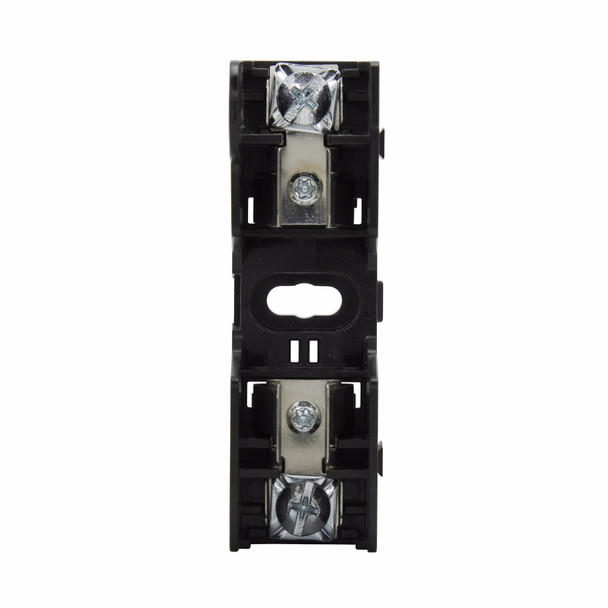

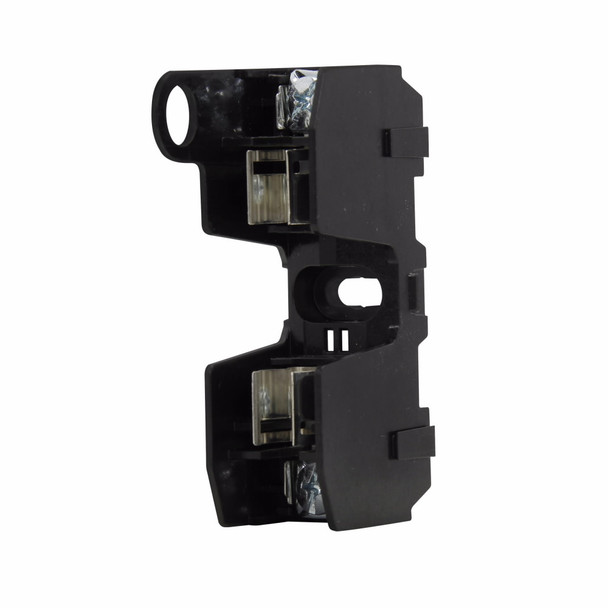

Bussmann HM25030-1PR Fuse Block
Bussmann Fuse Block, Modular, Series: HM Series, 250 V, 0 to 30 A, 1 Pole, Class: H/K, Fuse Holder Code: H, 18 to 10 AWG Wire, DIN Rail/Panel Mount, 2 in Fuse Length, 0.56 in Fuse Dia, -40 to 120 deg C, For Use With: NON Series Fuse, Thermoplastic, 3.2 in L x 1 in W x 2 in H
Additional Description: BUSS-HM25030-1PR Fuse Block, Class H, 250V 30A, 1 Pole
Catalog Description: Eaton Bussmann series HM modular fuse block, 250V, 0-30A, PR, Single-pole
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 0 to 30 |
| Amperage Rating | 0 to 30 A |
| Amperage Rating | 30 |
| Class | H |
| Class | H/K |
| Connection type | Pressure Plate |
| Dimensions | 3.2 in L x 1 in W x 2 in H |
| Fuse Diameter | 0.56 |
| Fuse Diameter | 0.56 in |
| Fuse Length | 2 |
| Fuse Length | 2 in |
| Material | Thermoplastic |
| Mounting type | DIN Rail/Panel |
| Number of Poles | 1 |
| Series | HM Series |
| Series | HM250 |
| Suitable For Use With | NON Series Ferrule Fuse |
| Suitable For Use With | NON Series Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Modular |
| Voltage Rating | 250 |
| Voltage Rating | 250 V |
| Wire Size | 18 to 10 |
| Wire Size | 18 to 10 AWG |
