Description

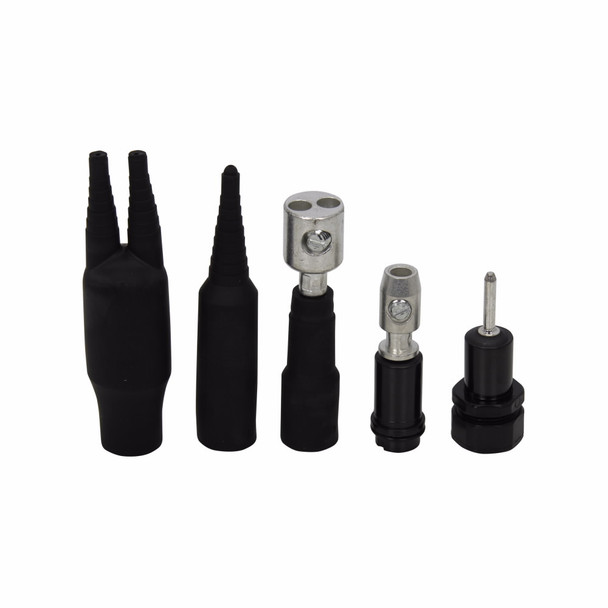

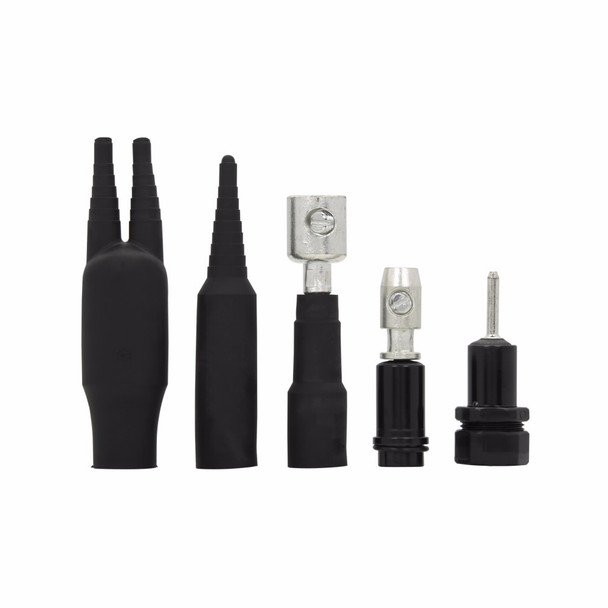

Bussmann HEB-BW-RLC-B
Bussmann Tron Fuse Holder, Breakaway In-line, Series: HEB, 600 V, 30 A, 1 Pole, Copper Crimp Line/Load, 6 AWG (2) 10 AWG Line, 6 AWG, (2) 10 AWG Load Wire, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, -40 to 221 deg F, For Use With: 13/32 x 1-1/2 in BAF, FNM, FNQ, KTK Series Fuse, Black, 10-3/8 in L
Additional Description: BUSS-HEB-BW-RLC-B BUSS FUSEHOLDER
Catalog Description: Eaton Bussmann series HEB inline fuse holder, 600V, 30A, Loadside: Copper crimp #6; (2) #10, Lineside: Copper crimp #6; (2) #10, Single-pole
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 30 A |
| Color | Black |
| Connection type | Copper Crimp Line/Load |
| Dimensions | 10-3/8 in L |
| Fuse Diameter | 13/32 in |
| Fuse Length | 1-1/2 in |
| Number of Poles | 1 |
| Series | HEB |
| Suitable For Use With | 13/32 x 1-1/2 in BAF, FNM, FNQ, KTK Series Fuse |
| Temperature Rating (Degrees F) | -40 to 221 deg F |
| Type | Breakaway In-line |
| Voltage Rating | 600 V |
| Wire Size | 6 AWG (2) 10 AWG Line, 6 AWG, (2) 10 AWG Load |
