Description

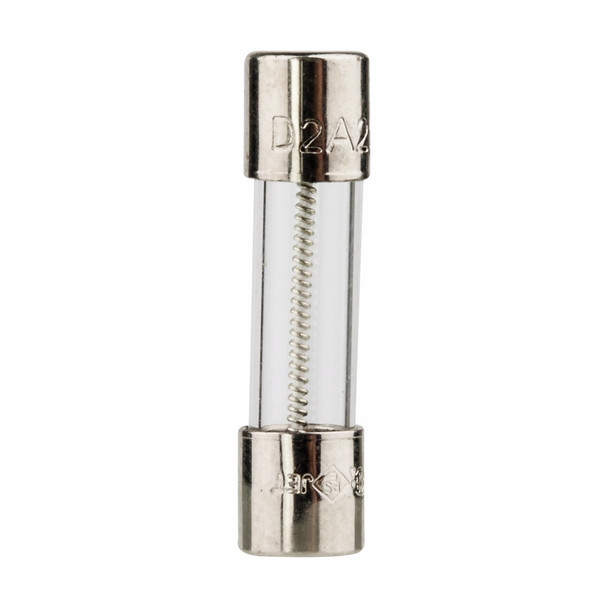

Bussmann GMD-2-R Time Delay Fuse
Bussmann Time Delay Fuse, Low Breaking Small Dimension, Series: GMD, Non-Indicating, Non-Rejection, 2 A, 250 VAC, 100 A/10 kA Interrupt, 50 Hz Frequency, 60 min, 2 min, 5 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 5 mm Dia x 20 mm L Body
Additional Description: BUSS-GMD-2-R GMD 2A BUSS FUSE
Catalog Description: 2A 250V 5mm x 20mm RoHS Compliant Glass, Time Delay Fuse
Specifications
| UNSPSC | 39121607 |
|---|---|
| Amperage Rating | 2 |
| Amperage Rating | 2 A |
| Body Type | Cylindrical |
| Frequency Rating | 50 |
| Frequency Rating | 50 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100 A/10 kA |
| Material | Glass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 60 min, 2 min, 5 s |
| Series | GMD |
| Terminal Type | Ferrule |
| Type | Low Breaking Small Dimension |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC |
