Description

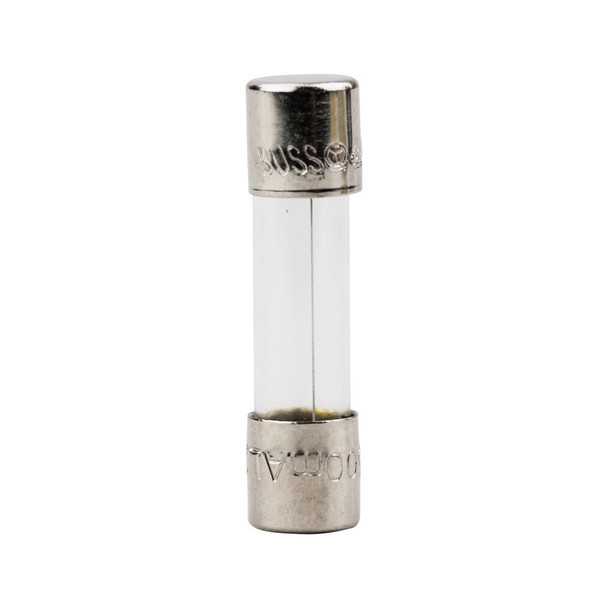

Bussmann GMC-7-R Time Delay Fuse
Bussmann Time Delay Fuse, Low Breaking Medium, Series: GMC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 7 A, 125 VAC, 200 A Interrupt, 60 min, 2 min Response, Ferrule Terminal, Holder Mount, Cylindrical Body, Single Element, Glass, 5.2 mm Dia x 20 mm L Body Size
Additional Description: BUSS-GMC-7-R (N) GMC 7A BUSS FUSE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 7A 125V 5mm x 20mm RoHS Compliant Glass, Medium Time Delay Fuse
Specifications
| UNSPSC | 39121607 |
|---|---|
| Amperage Rating | 7 |
| Amperage Rating | 7 A |
| Body Type | Cylindrical |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 A |
| Material | Glass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 60 min, 2 min |
| Series | GMC |
| Terminal Type | Ferrule |
| Type | Low Breaking Medium |
| Voltage Rating | 125 |
| Voltage Rating | 125 VAC |
