Description

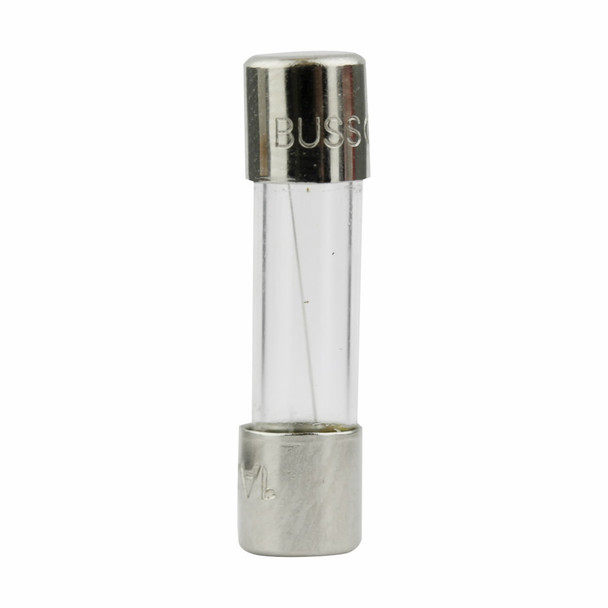

Bussmann GMC-125-R Time Delay Fuse
Bussmann Time Delay Fuse, Low Breaking Medium, Series: GMC, Non-Indicating, Non-Rejection, 125 mA, 250 VAC, 35 A/10 kA Interrupt, 60 min, 2 min Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 5 mm Dia x 20 mm L Body
Additional Description: BUSS-GMC-125-R (N) GMC-125MA BUSS FUSE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 125MA 250V 5mm x 20mm RoHS Compliant Glass, Medium Time Delay Fuse
Specifications
| UNSPSC | 39121607 |
|---|---|
| Amperage Rating | 125 mA |
| Body Type | Cylindrical |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 35 A/10 kA |
| Material | Glass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 60 min, 2 min |
| Series | GMC |
| Terminal Type | Ferrule |
| Type | Low Breaking Medium |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC |
