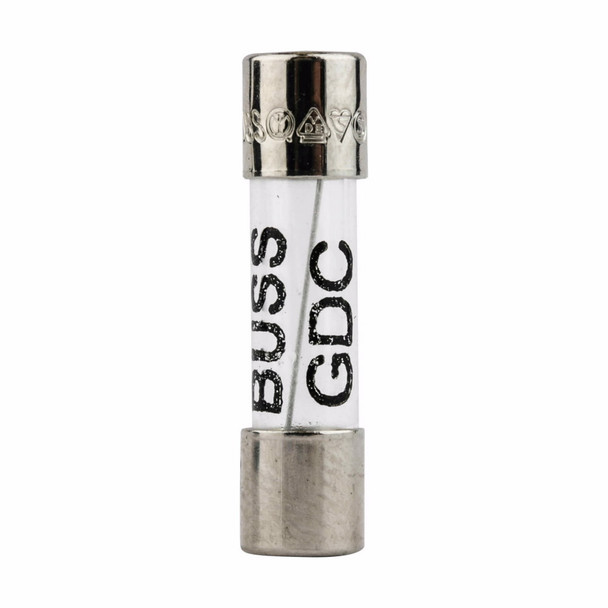

Bussmann GDC-5A Time Delay Fuse
Bussmann Time Delay Fuse, Electronic Small Dimension, Series: GDC, Non-Indicating, Non-Rejection, 5 A, 250 VAC/32 VDC, 50 A Interrupt, 50 Hz, 2 min, 600 ms, 10 s, 150 ms, 3 s, 20 ms, 300 ms Response, Ferrule Terminal, Clip/Holder Mount, Cylindrical Body Type, Single Element, Glass, 5.2 mm Dia x 20 mm H Body Size
Additional Description: BUSS-GDC-5A BUSS SMALL DIMENSION FUSE (PACK OF 5)
Catalog Description: Eaton GDC Series Time-delay fuse 5A, 250 Vac or less, 32 Vdc (self certified)
Specifications
| UNSPSC | 39121607 |
|---|---|
| Amperage Rating | 5 |
| Amperage Rating | 5 A |
| Body Type | Cylindrical |
| Frequency Rating | 50 |
| Frequency Rating | 50 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 50 |
| Interrupt Rating | 50 A |
| Material | Glass |
| Mounting type | Clip/Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 2 min, 600 ms, 10 s, 150 ms, 3 s, 20 ms, 300 ms |
| Series | GDC |
| Terminal Type | Ferrule |
| Type | Electronic Small Dimension |
| Voltage Rating | 250 VAC/32 VDC |
