Description

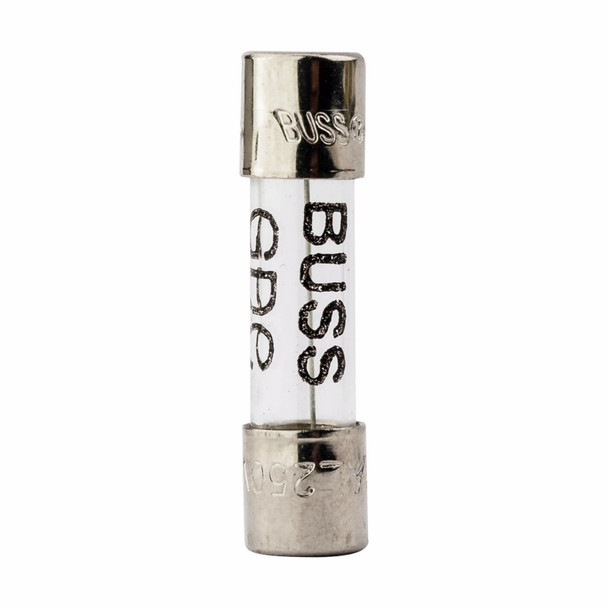

Bussmann GDC-100MA Time Delay Fuse
Bussmann Time Delay Fuse, Electronic Small Dimension, Series: GDC, Non-Indicating, Non-Rejection, 100 mA, 250 VAC/32 VDC, 35 A Interrupt, 50 Hz, 2 min, 200 ms, 10 s, 40 ms, 3 s, 10 ms, 300 ms Response, Ferrule Terminal, Clip/Holder Mount, Cylindrical Body Type, Single Element, Glass, 5.2 mm Dia x 20 mm H Body Size
Additional Description: BUSS-GDC-100MA BUSS SMALL DIMENSION FUSE
Catalog Description: 100mA 250V 5x20mm, Time-Delay, Glass Tube
Specifications
| UNSPSC | 39121607 |
|---|---|
| Amperage Rating | 100 |
| Amperage Rating | 100 mA |
| Body Type | Cylindrical |
| Frequency Rating | 50 |
| Frequency Rating | 50 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 35 |
| Interrupt Rating | 35 A |
| Material | Glass |
| Mounting type | Clip/Holder |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 2 min, 200 ms, 10 s, 40 ms, 3 s, 10 ms, 300 ms |
| Series | GDC |
| Terminal Type | Ferrule |
| Type | Electronic Small Dimension |
| Type | Low Breaking Small Dimension |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC/32 VDC |
