Description

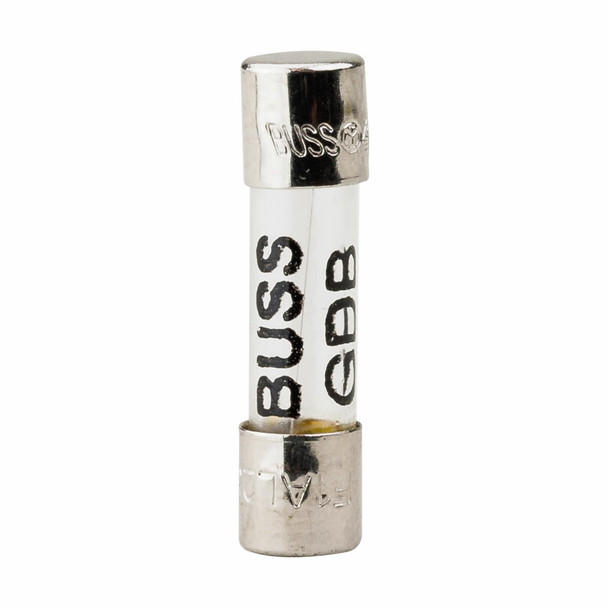

Bussmann GDB-630MA Fast Acting Fuse
Bussmann Fast Acting Fuse, Small Dimension, Series: GDB, Non-Indicating, Non-Rejection, 630 mA, 250 VAC, 32 VDC, 50 A Interrupt, 50 Hz Frequency, 60 min, 30 min, 300 ms, 50 ms, 20 ms, 10 ms, 2 s Response, Ferrule Terminal, Clip/Holder Mounting, Cylindrical Body, Single Element, Glass, 5.2 mm Dia x 20 mm H Body
Additional Description: BUSS-GDB-630MA BUSS SMALL DIMENSION FUSE
Catalog Description: Eaton GDB Series Fast-acting fuse 0.630A, 250 Vac or less, 32 Vdc (self certified), GDB-630MA
Specifications
| UNSPSC | 39121607 |
|---|---|
| Amperage Rating | 630 |
| Amperage Rating | 630 mA |
| Body Type | Cylindrical |
| Frequency Rating | 50 |
| Frequency Rating | 50 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 50 |
| Interrupt Rating | 50 A |
| Material | Glass |
| Mounting type | Clip/Holder |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 60 min, 30 min, 300 ms, 50 ms, 20 ms, 10 ms, 2 s |
| Response Time | 60 min, 30 min, 50 ms, 2 s, 10 ms, 300 ms, 20 ms |
| Series | GDB |
| Terminal Type | Ferrule |
| Type | Low Breaking Small Dimension |
| Type | Small Dimension |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC, 32 VDC |
