Description

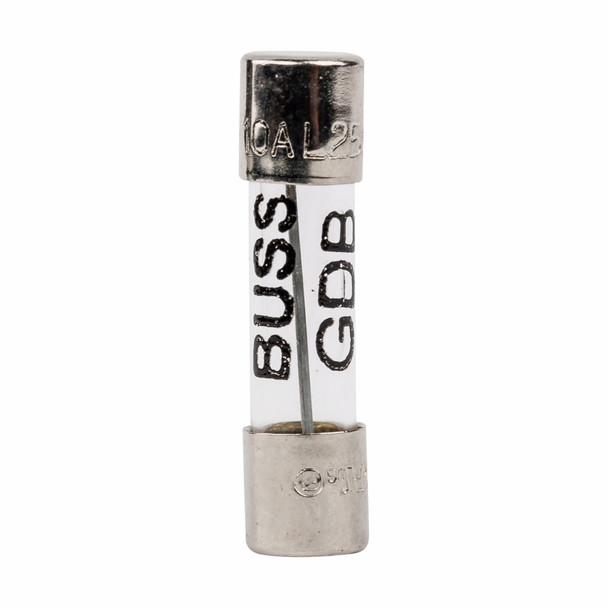

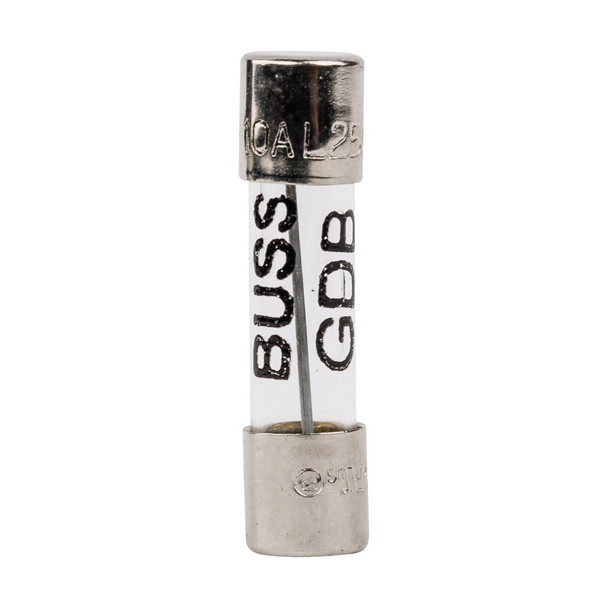

Bussmann GDB-10A Fast Acting Fuse
Bussmann Fast Acting Fuse, Small Dimension, Series: GDB, Non-Indicating, Non-Rejection, 10 A, 250 VAC, 32 VDC, 100 A Interrupt, 50 Hz Frequency, 30 min, 400 ms, 50 ms, 2 s, 10 ms, 40 ms Response, Ferrule Terminal, Clip/Holder Mounting, Cylindrical Body, Single Element, Glass, 5.2 mm Dia x 20 mm H Body
Additional Description: BUSS-GDB-10A BUSS SMALL DIMENSION FUSE
Catalog Description: Eaton GDB Series Fast-acting fuse 10A, 250 Vac or less, 32 Vdc (self certified), GDB-10A
Specifications
| UNSPSC | 39121607 |
|---|---|
| Amperage Rating | 10 |
| Amperage Rating | 10 A |
| Body Type | Cylindrical |
| Frequency Rating | 50 |
| Frequency Rating | 50 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100 |
| Interrupt Rating | 100 A |
| Material | Glass |
| Mounting type | Clip/Holder |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 30 min, 400 ms, 50 ms, 2 s, 10 ms, 40 ms |
| Response Time | 30 min, 50 ms, 2 s, 10 ms, 400 ms, 40 ms |
| Series | GDB |
| Terminal Type | Ferrule |
| Type | Low Breaking Small Dimension |
| Type | Small Dimension |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC, 32 VDC |
