Description

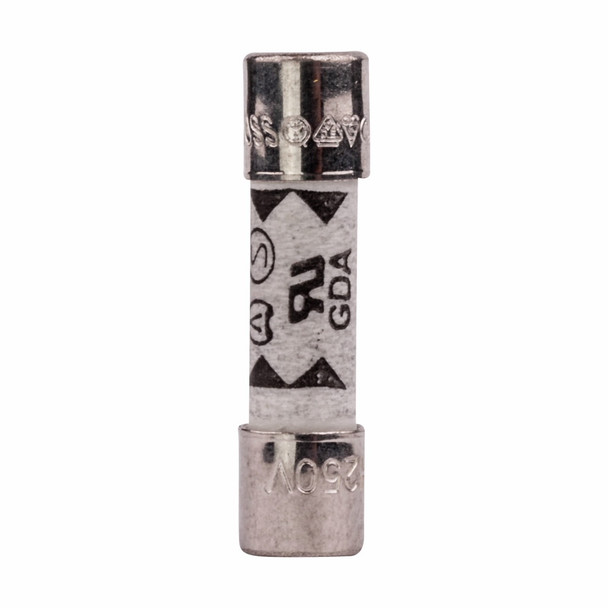

Bussmann GDA-5A Fast Acting Fuse
Bussmann Fast Acting Fuse, Small Dimension, Series: GDA, Non-Indicating, Non-Rejection, 5 A, 250 VAC, 32 VDC, 1500 A Interrupt, 50 Hz Frequency, 60 min, 30 min, 10 ms, 3 s, 3 ms, 300 ms, 20 ms Response, Ferrule Terminal, Clip/Holder Mounting, Cylindrical Body, Single Element, Ceramic, 5.2 mm Dia x 20 mm H Body
Additional Description: BUSS-GDA-5A BUSS SMALL DIMENSION FUSE
Catalog Description: Eaton GDA Series Fast-acting fuse 5A, 250 Vac, 32 Vdc (self certified), GDA-5A
Specifications
| UNSPSC | 39121611 |
|---|---|
| Amperage Rating | 5 |
| Amperage Rating | 5 A |
| Body Type | Cylindrical |
| Frequency Rating | 50 |
| Frequency Rating | 50 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 1.5 |
| Interrupt Rating | 1500 |
| Interrupt Rating | 1500 A |
| Material | Ceramic |
| Mounting type | Clip/Holder |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 60 |
| Response Time | 60 min, 30 min, 10 ms, 3 s, 3 ms, 300 ms, 20 ms |
| Series | GDA |
| Terminal Type | Ferrule |
| Type | High Breaking Small Dimension |
| Type | Small Dimension |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC, 32 VDC |
