Description

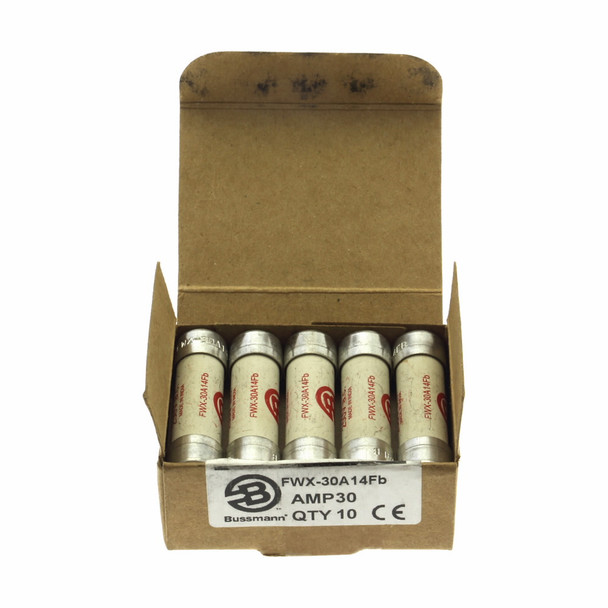

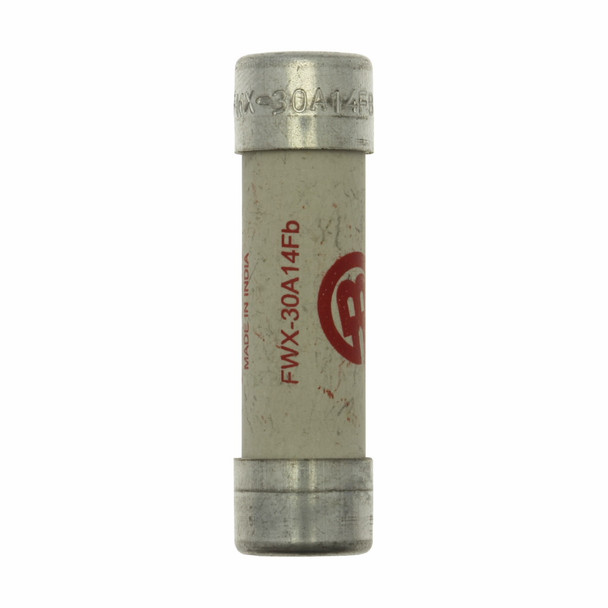

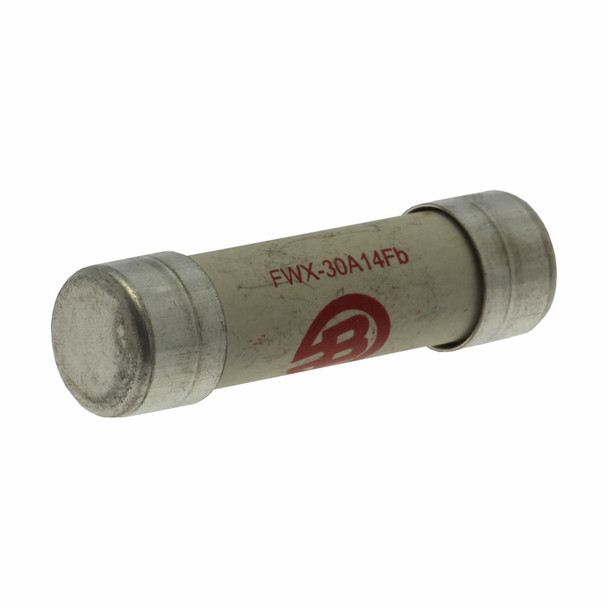

Bussmann FWX-30A14F High Speed Fuse
Bussmann High Speed Fuse, Fast Acting, Series: FWX, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 30 A, 250 VAC, 200 kA Interrupt, 45 to 1000 Hz, Ferrule End Terminal, Holder Mount, Cylindrical Body, Single Element, Ceramic, 0.563 in Dia x 2 in L Body Size
Additional Description: BUSS-FWX-30A14F 30AMP 250V AC FERRULE 14.3 X 50.8MM
Catalog Description: Eaton Bussmann series FWX high speed fuse, 600V, 30A, 200 kAIC Vac, 50 kAIC at 250 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Body Type | Cylindrical |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 kA |
| Interrupt Rating | 50/200 |
| Material | Ceramic |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | FWX |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | Fast Acting |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC |
| Voltage Rating | 600 |
