Description

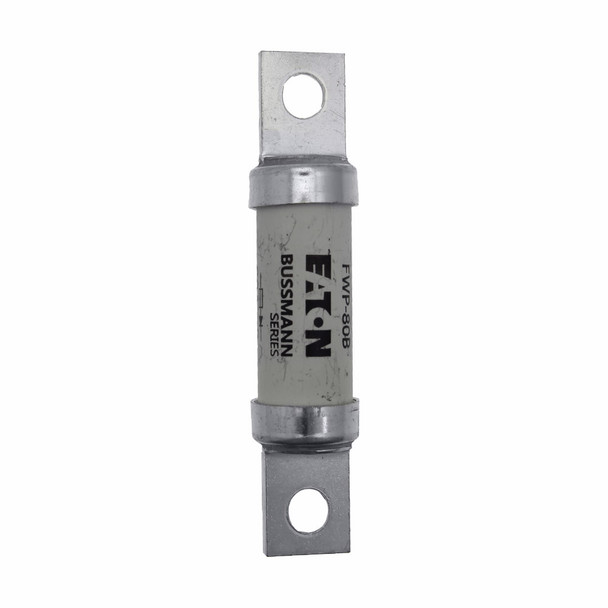

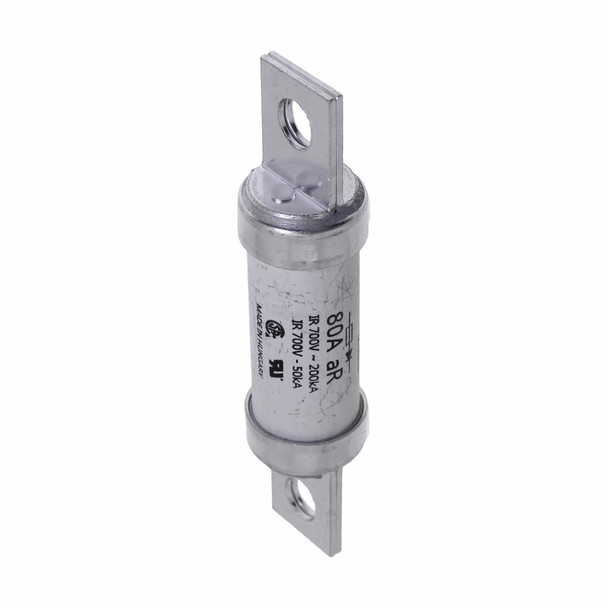

Bussmann FWP-80B High Speed Fuse
Bussmann High Speed Fuse, Fast Acting Semi-Conductor, Series: FWP, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 80 A, 700 VAC, 200 kA Interrupt, 45 to 1000 Hz, Blade End Terminal, Stud Mount, Cylindrical Body, Single Element, Ceramic, 0.947 in Dia x 4.406 in L Body Size
Additional Description: BUSS-FWP-80B 80AMP 700V AC SEMI-COND FUSE
Catalog Description: UL 1077 Industrial Miniature Circuit Breaker - Supplementary Protector, 16A, 10-20X /n trip, Single-pole, Standard terminals
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 80 |
| Amperage Rating | 80 A |
| Body Type | Cylindrical |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 kA |
| Interrupt Rating | 50/200 |
| Material | Ceramic |
| Mounting type | Stud |
| Rejection/Non-Rejection | Non-Rejection |
| Series | FWP |
| Terminal Type | Blade |
| Terminal Type | Blade End |
| Type | Fast Acting |
| Type | Fast Acting Semi-Conductor |
| Voltage Rating | 700 |
| Voltage Rating | 700 VAC |
