Description

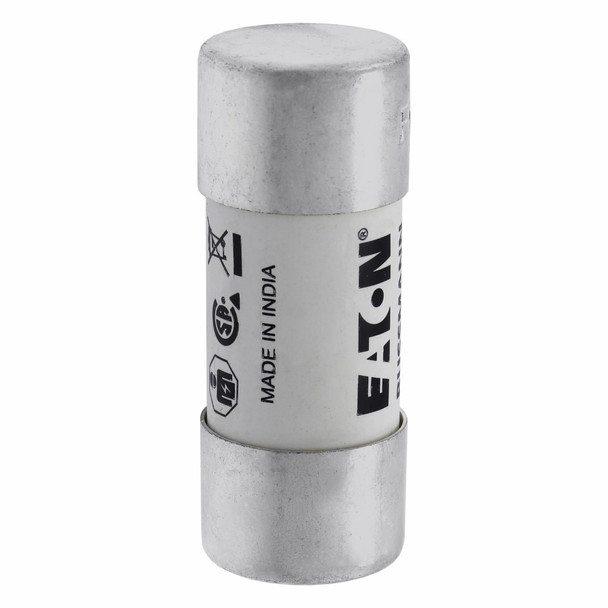

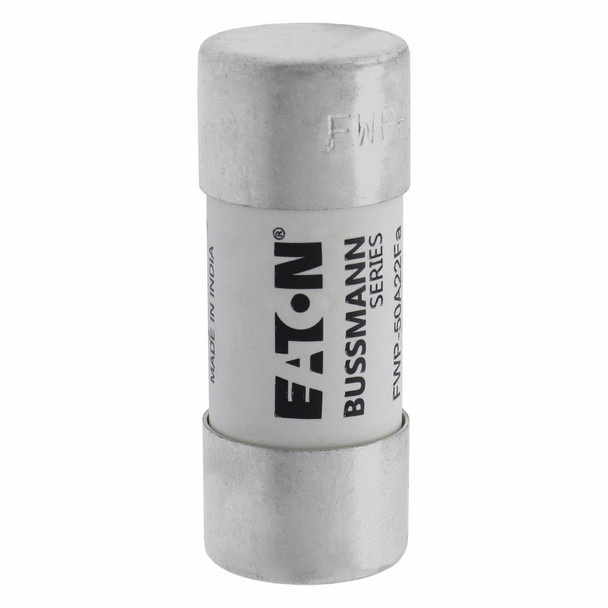

Bussmann FWP-50A22F High Speed Fuse
Bussmann High Speed Fuse, Fast Acting, Series: FWP, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 50 A, 700 VAC, 50 kA Interrupt, Class: aR, 45 to 1000 Hz, Ferrule End Terminal, Holder Mount, Cylindrical Body, Ceramic, 0.875 in Dia x 2.283 in L Body Size
Additional Description: BUSS-FWP-50A22F 50AMP 700V ac 22 X 58MM FERRULE
Catalog Description: Eaton Bussmann series FWP high speed fuse, 700 Vac, 700 Vdc (UL), 50A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 50 |
| Amperage Rating | 50 A |
| Body Type | Cylindrical |
| Class | AR |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 50 kA |
| Interrupt Rating | 50/200 |
| Material | Ceramic |
| Material | Fiberglass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | FWP |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | Fast Acting |
| Voltage Rating | 690/700 |
| Voltage Rating | 700 VAC |
