Description

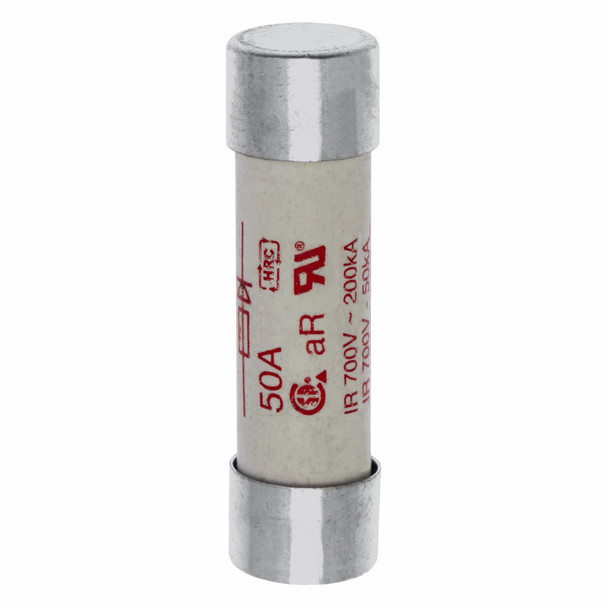

Bussmann FWP-50A14F High Speed Fuse
Bussmann High Speed Fuse, Series: FWP, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 50 A, 700 VAC, 50 kA Interrupt, Class: aR, Ferrule End Terminal, Holder Mount, Cartridge Body, Single Element, Ceramic, 0.563 in Dia x 2 in L Body Size
Additional Description: BUSS-FWP-50A14F 50AMP 700V AC FERRULE 14 X 51 MM SEMI-COND.F
Catalog Description: Eaton Bussmann series FWP high speed fuse, 700 Vac (UL), 700 Vdc (UL), 690 Vac (IEC), 50A, 200 kAIC at 700 Vac, 50 kAIC at 700 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 50 |
| Amperage Rating | 50 A |
| Body Type | Cartridge |
| Body Type | Cylindrical |
| Class | AR |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 50 kA |
| Interrupt Rating | 50/200 |
| Material | Ceramic |
| Material | Fiberglass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | FWP |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | Fast Acting |
| Voltage Rating | 690/700 VAC, 800 VDC |
| Voltage Rating | 700 VAC |
| Voltage Rating | 700/690 VAC, 800 VDC |
