Description

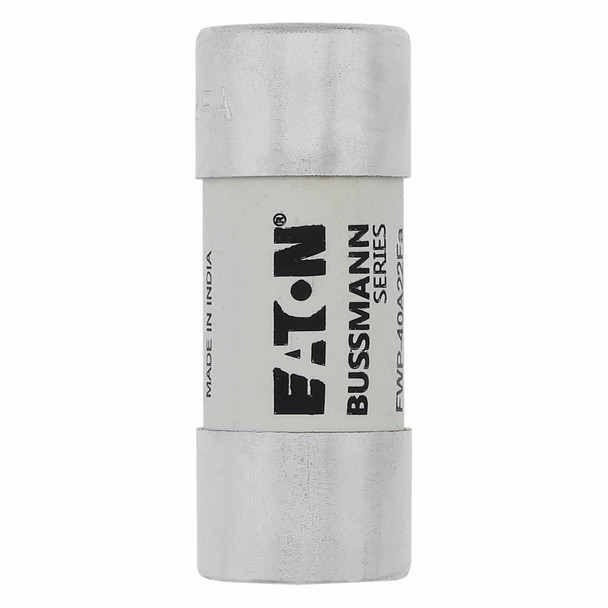

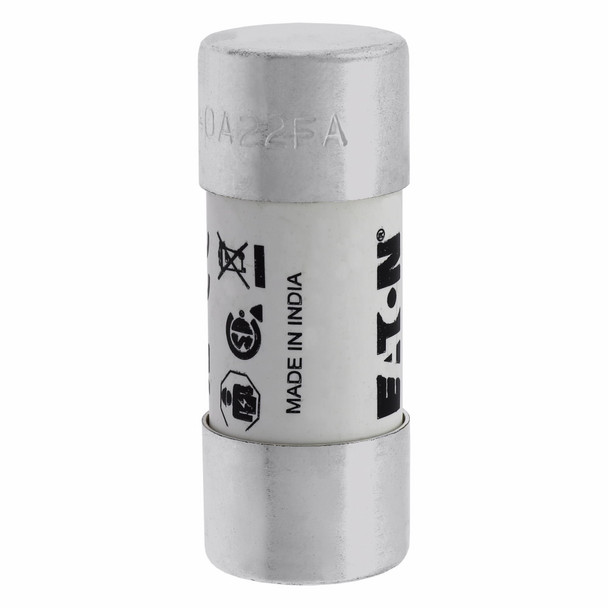

Bussmann FWP-40A22F High Speed Fuse
Bussmann High Speed Fuse, Fast Acting, Series: FWP, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 40 A, 700 VAC, 200 kA Interrupt, Class: aR, 45 to 1000 Hz, Ferrule End Terminal, Holder Mount, Cylindrical Body, Single Element, Ceramic, 0.875 in Dia x 2.283 in L Body Size
Additional Description: BUSS-FWP-40A22F 40AMP 700V ac 22 X 58MM FERRULE
Catalog Description: Eaton Bussmann series FWP high speed fuse, 700 Vac (IEC), 700 Vdc (UL), 40A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 40 |
| Amperage Rating | 40 A |
| Body Type | Cylindrical |
| Class | AR |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 kA |
| Interrupt Rating | 50/200 |
| Material | Ceramic |
| Material | Fiberglass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | FWP |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | Fast Acting |
| Voltage Rating | 690/700 |
| Voltage Rating | 700 VAC |
