Description

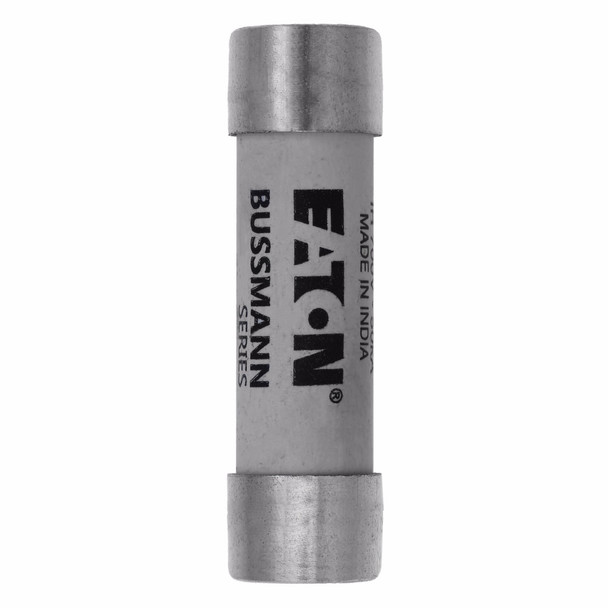

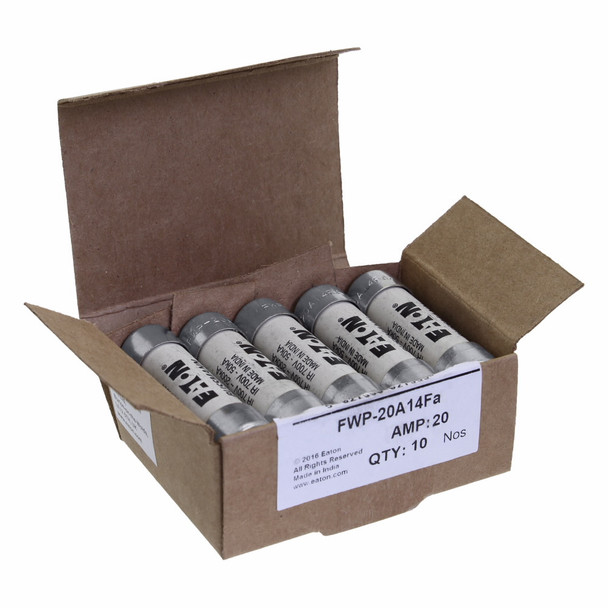

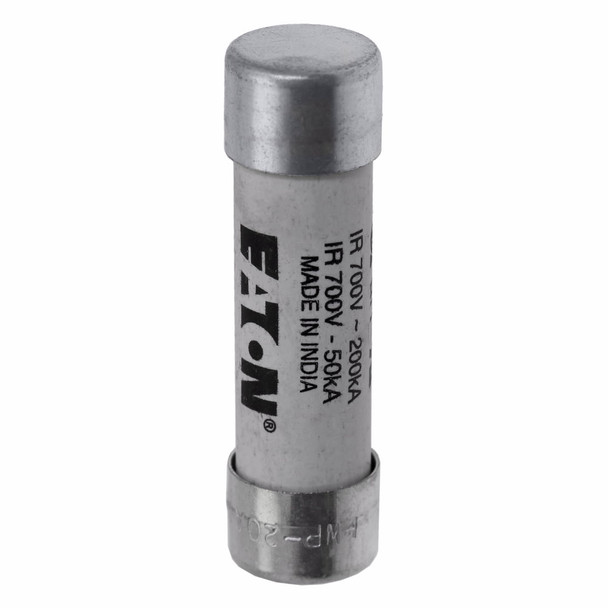

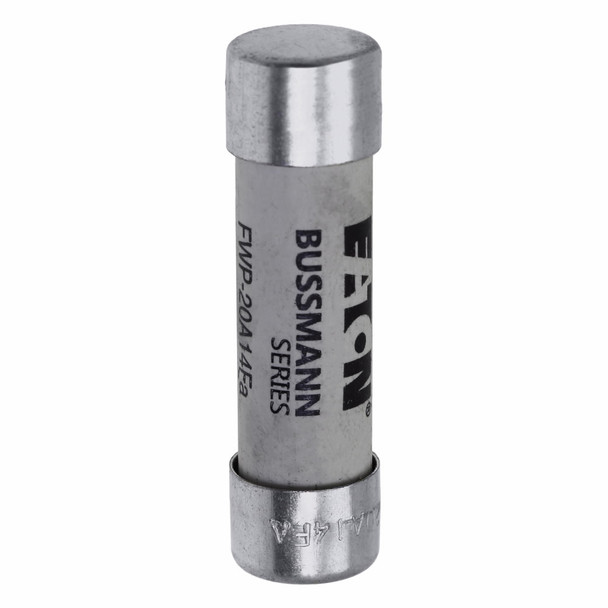

Bussmann FWP-20A14F High Speed Fuse
Bussmann High Speed Fuse, Fast Acting, Series: FWP, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 20 A, 700 VAC, 200 kA Interrupt, Class: aR, 45 to 1000 Hz, Ferrule End Terminal, Holder Mount, Cylindrical Body, Single Element, Ceramic, 0.563 in Dia x 2 in L Body Size
Additional Description: BUSS-FWP-20A14F 20AMP 700V AC FERRULE 14 X 51 MM
Catalog Description: Eaton Bussmann series FWP high speed fuse, 700 Vac (UL), 700 Vdc (UL), 690 Vac (IEC), 20A, 200 kAIC at 700 Vac, 50 kAIC at 700 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 20 |
| Amperage Rating | 20 A |
| Body Type | Cylindrical |
| Class | AR |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Interrupt Rating | 50/200 |
| Material | Ceramic |
| Material | Fiberglass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | FWP |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | Fast Acting |
| Voltage Rating | 690/700 VAC, 800 VDC |
| Voltage Rating | 700 |
| Voltage Rating | 700 VAC |
