Description

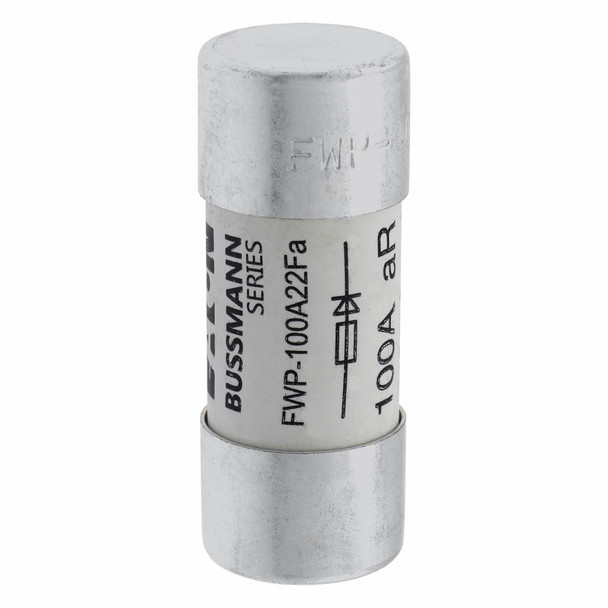

Bussmann FWP-100A22F High Speed Fuse
Bussmann High Speed Fuse, Series: FWP, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 100 A, 700 VAC, 50 kA Interrupt, Class: aR, Ferrule End Terminal, Holder Mount, Cartridge Body, Single Element, Ceramic, 0.875 in Dia x 2.283 in L Body Size
Additional Description: BUSS-FWP-100A22F 100AMP 700V ac 22 X 58MM FERRULE
Catalog Description: Eaton Bussmann series FWP high speed fuse, 700 Vac (IEC), 700 Vdc (UL), 100A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 100 |
| Amperage Rating | 100 A |
| Body Type | Cartridge |
| Body Type | Cylindrical |
| Class | AR |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 50 kA |
| Interrupt Rating | 50/200 |
| Material | Ceramic |
| Material | Fiberglass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | FWP |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | Fast Acting |
| Voltage Rating | 690/700 |
| Voltage Rating | 700 VAC |
