Description

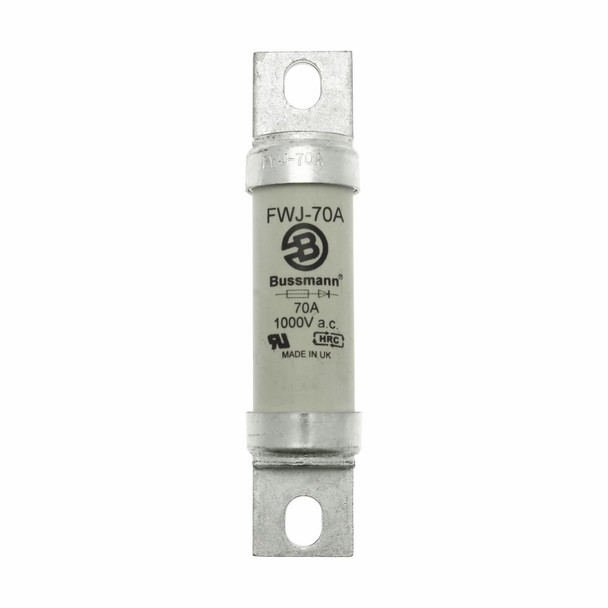

Bussmann FWJ-70A High Speed Fuse
Bussmann High Speed Fuse, Fast Acting Semi-Conductor, Series: FWJ, Non-Indicating, Non-Rejection, 70 A, 1000 V, 100 kA Interrupt, 45 to 1000 Hz Frequency, Blade End Terminal, Bolted-In Mounting, Cylindrical Body, Single Element, Ceramic, 1.125 in Dia x 4.932 in L Body
Additional Description: BUSS-FWJ-70A (N) 70AMP 1000V AC SEMI-COND FUSE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series FWJ high speed fuse, 700 Vac (UL), 690 Vac (IEC), 500 Vdc (2-100A), 500 Vac, 70A, 25 kAIC (35-200A), 100 kAIC (250-2000A), 50 kAIC at 800 Vdc (35-200A, 450-600A), None, High speed fuse, Blade end X blade end, Stud
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 70 |
| Amperage Rating | 70 A |
| Body Type | Cylindrical |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100 kA |
| Interrupt Rating | 25 |
| Material | Ceramic |
| Mounting type | Bolted-In |
| Mounting type | Bolt-In |
| Rejection/Non-Rejection | Non-Rejection |
| Series | FWJ |
| Terminal Type | Blade |
| Terminal Type | Blade End |
| Type | Fast Acting |
| Type | Fast Acting Semi-Conductor |
| Voltage Rating | 1000 |
| Voltage Rating | 1000 V |
