Description

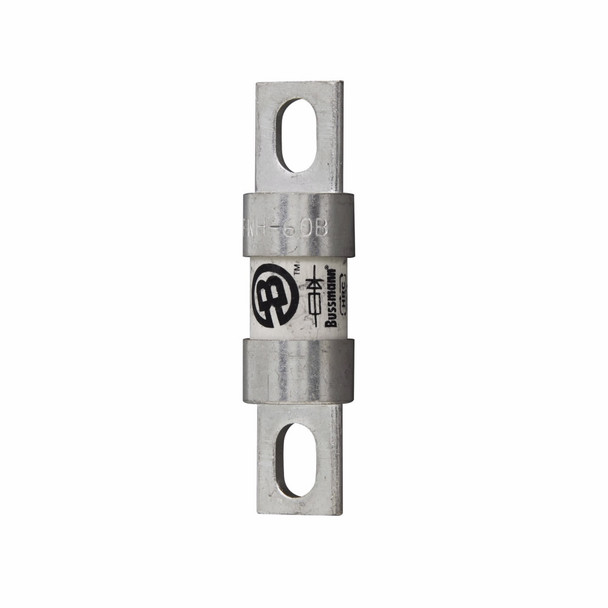

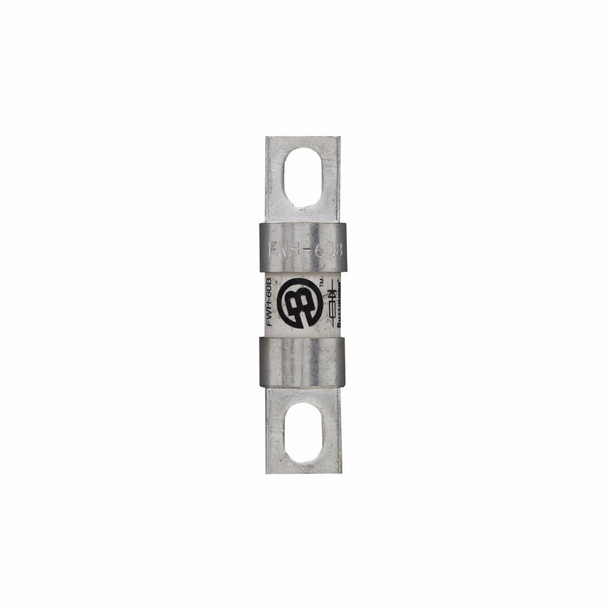

Bussmann FWH-50B High Speed Fuse
Bussmann High Speed Fuse, Fast Acting, Series: FWH, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 50 A, 500 VAC, 200 kA Interrupt, 45 to 1000 Hz, Blade End Terminal, Stud Mount, Cylindrical Body, Single Element, Ceramic, 0.813 in Dia x 3.188 in L Body Size
Additional Description: BUSS-FWH-50B 50A 500V AC TAG FUSE
Catalog Description: Eaton Bussmann series FWH high speed fuse, 1200V, 50A, 200 kAIC at 1000 Vac, 50 kAIC at 500 Vdc, None, High speed fuse, Blade end X blade end, Stud
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 50 |
| Amperage Rating | 50 A |
| Body Type | Cylindrical |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Interrupt Rating | 50/200 |
| Material | Ceramic |
| Mounting type | Stud |
| Rejection/Non-Rejection | Non-Rejection |
| Series | FWH |
| Terminal Type | Blade |
| Terminal Type | Blade End |
| Type | Fast Acting |
| Voltage Rating | 500 |
| Voltage Rating | 500 VAC |
