Description

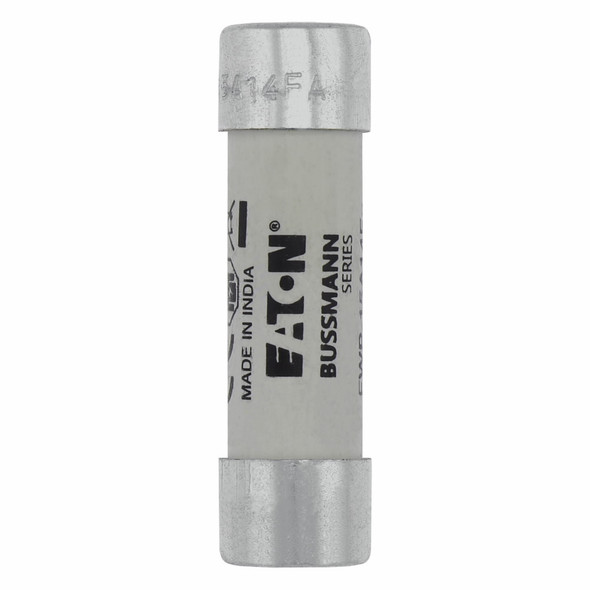

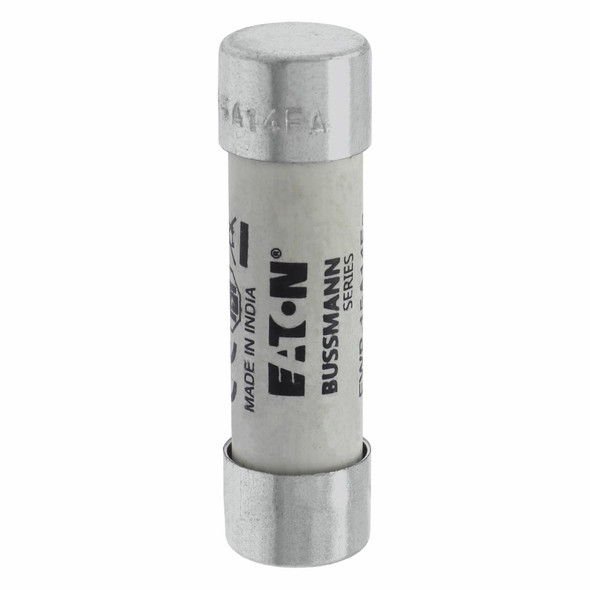

Bussmann FWH-15A14F High Speed Fuse
Bussmann High Speed Fuse, Series: FWH, Indicating/Non-Indicating: Non-Indicating, 15 A, 500 VAC, 200 kA Interrupt, Class: aR, 42/62 Hz, Ferrule End Terminal, Holder Mount, Cylindrical Body, 0.563 in Dia x 2 in L Body Size
Additional Description: BUSS-FWH-15A14F 500V 15AMP S/COND FERRULE 14.3 X 50.8MM
Catalog Description: Eaton Bussmann series FWH high speed fuse, 1000 Vac, 800 Vdc, 15A, 200 kAIC Vac, 50 kAIC at 500 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 15 |
| Amperage Rating | 15 A |
| Body Type | Cartridge |
| Body Type | Cylindrical |
| Class | AR |
| Frequency Rating | 42 to 62 |
| Frequency Rating | 42/62 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 kA |
| Interrupt Rating | 50/200 |
| Material | Fiberglass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | FWH |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Terminal Type | Ferrule End x Ferrule End |
| Type | Fast Acting Semiconductor |
| Voltage Rating | 500 |
| Voltage Rating | 500 VAC |
