Description

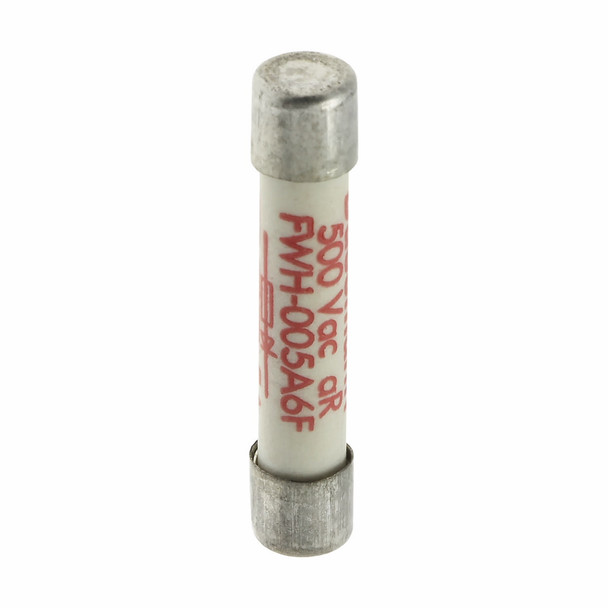

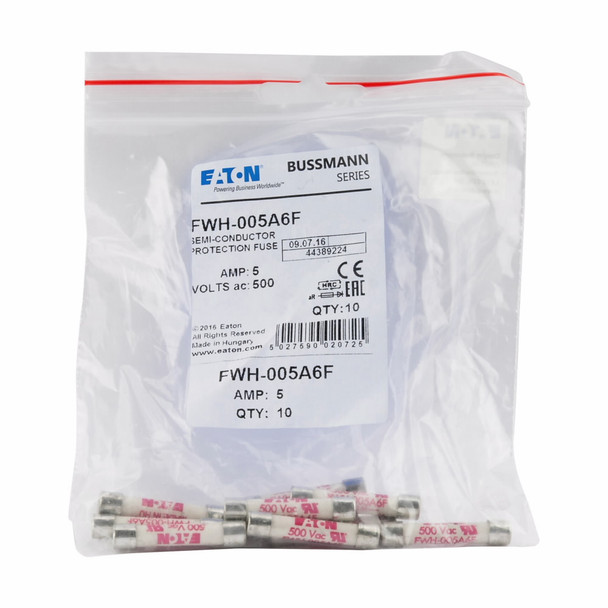

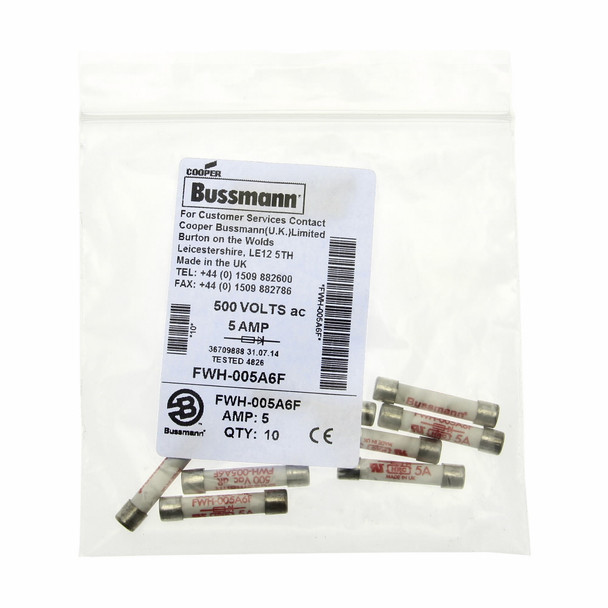

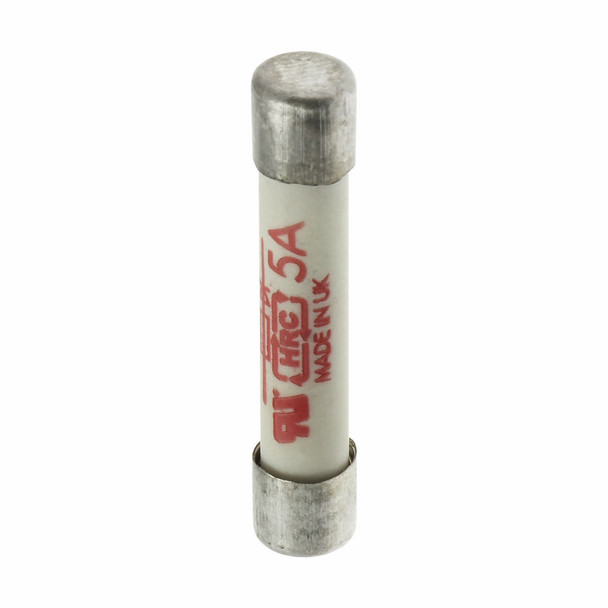

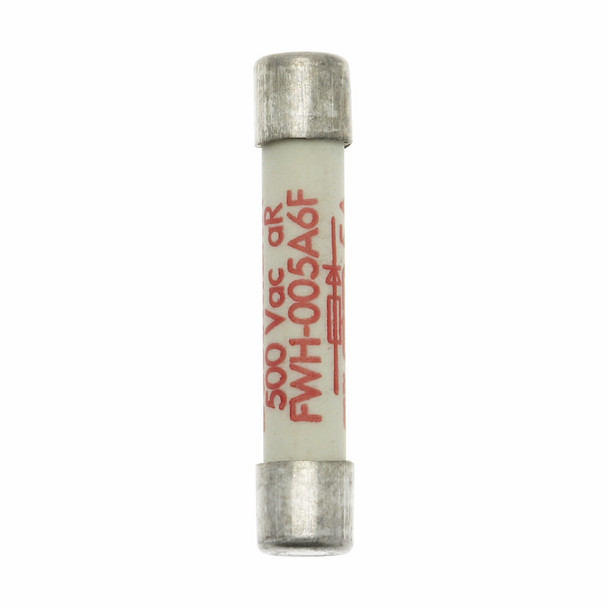

Bussmann FWH-005A6F High Speed Fuse
Bussmann High Speed Fuse, Fast Acting Semi-Conductor, Series: FWH, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 5 A, 500 VAC, 20 kA Interrupt, 45 to 1000 Hz, 30 min at 150%, 30 min at 200%, 10 s at 300% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body, Single Element, Ceramic, 1/4 in Dia x 1-1/4 in L Body Size
Additional Description: BUSS-FWH-005A6F SEMI-COND FUSE 5.0A 500V AC
Catalog Description: Eaton Bussmann series FWH high speed fuse, 500 Vac/dc (35-800A only), 5A, 50 kAIC at 0.25-20A, 20 kAIC at 25-30A, Non Indicating, High speed fuse, Ferrule end X ferrule end
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 5 |
| Amperage Rating | 5 A |
| Body Type | Cylindrical |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 20 kA |
| Interrupt Rating | 50 |
| Material | Ceramic |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 30 min at 150%, 30 min at 200%, 10 s at 300% |
| Response Time | 30 min, 10 s |
| Series | FWH |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | Fast Acting |
| Type | Fast Acting Semi-Conductor |
| Voltage Rating | 500 |
| Voltage Rating | 500 VAC |
