Description

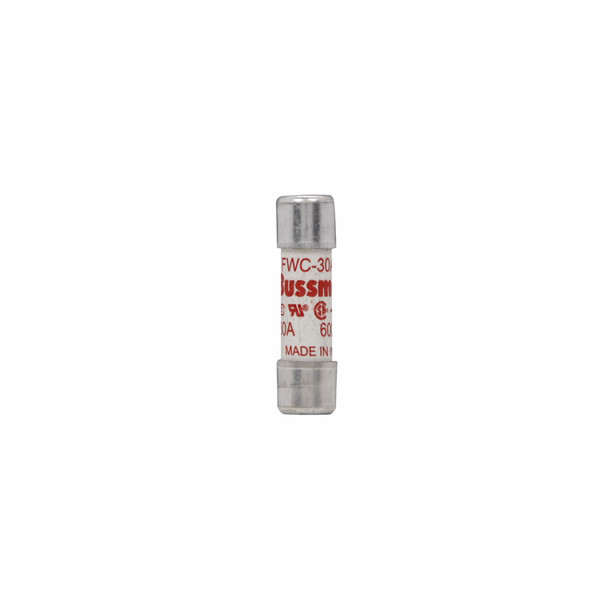

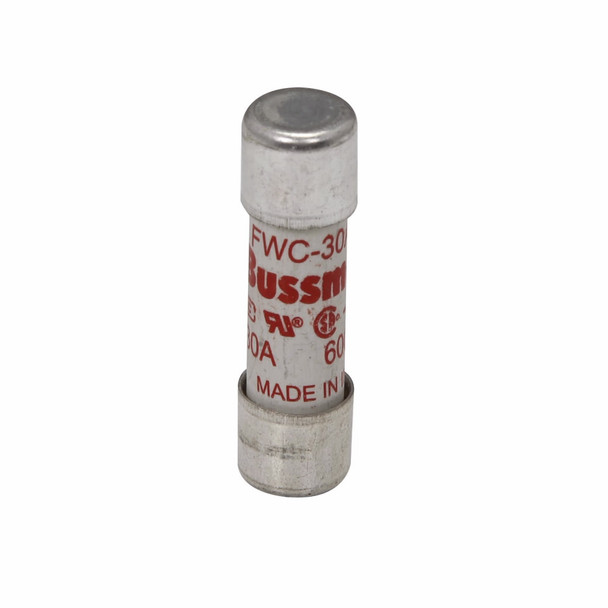

Bussmann FWC-30A10F High Speed Fuse
Bussmann High Speed Fuse, Series: FWC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 30 A, 600 VAC, 50 kA Interrupt, Class: aR, 45 to 62 Hz, Ferrule End Terminal, Holder Mount, Cartridge Body, Single Element, Fiberglass, 0.406 in Dia x 1.5 in L Body Size
Additional Description: BUSS-FWC-30A10F 30Amp 600Vac 10 X 38mm FERRULE FUSE FUSE
Catalog Description: Eaton Bussmann series FWC high speed cylindrical fuse, 500 Vac/dc (35-800A only), 30A, 200 kAIC Vac, 50 kAIC at 700 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Body Type | Cartridge |
| Class | AR |
| Frequency Rating | 45 to 62 |
| Frequency Rating | 45 to 62 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 50 kA |
| Interrupt Rating | 50/200 |
| Material | Fiberglass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | FWC |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
