Description

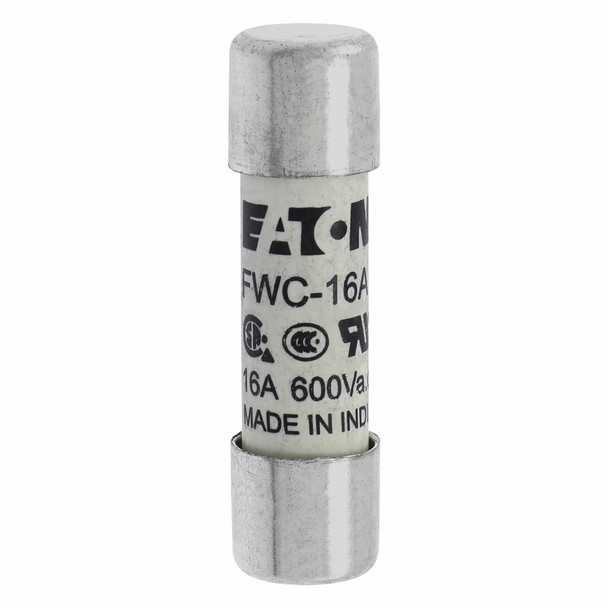

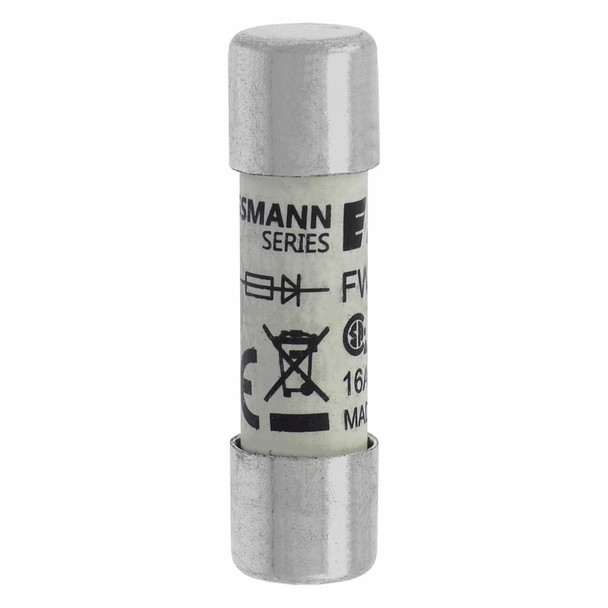

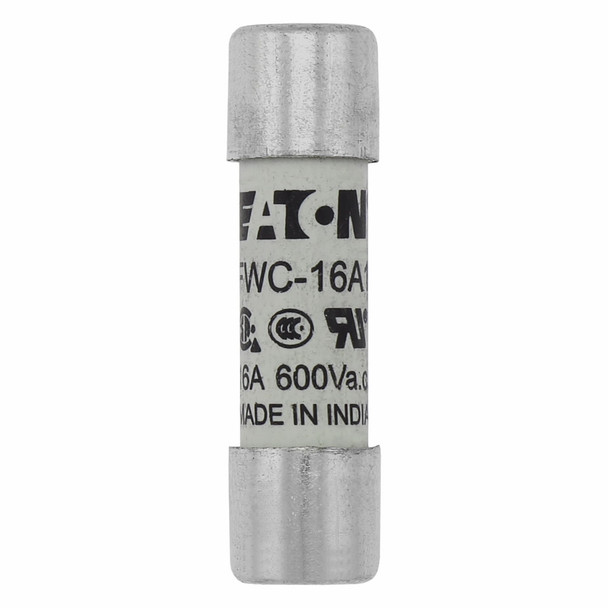

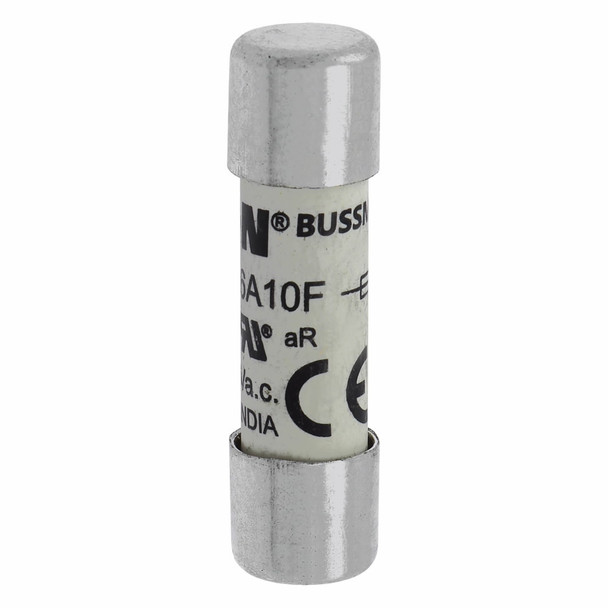

Bussmann FWC-16A10F High Speed Fuse
Bussmann High Speed Fuse, Fast Acting, Series: FWC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 16 A, 600 VAC, 50 kA Interrupt, Class: aR, 45 to 1000 Hz, Ferrule End Terminal, Holder Mount, Cylindrical Body, Single Element, Ceramic, 0.406 in Dia x 1.5 in L Body Size
Additional Description: BUSS-FWC-16A10F 16AMP 600V AC FERRULE 10 X 38MM
Catalog Description: Eaton Bussmann series FWC high speed cylindrical fuse, 700 Vac, 700 Vdc (UL), 16A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 16 |
| Amperage Rating | 16 A |
| Body Type | Cylindrical |
| Class | AR |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 50 kA |
| Material | Ceramic |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | FWC |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | Fast Acting |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
