Description

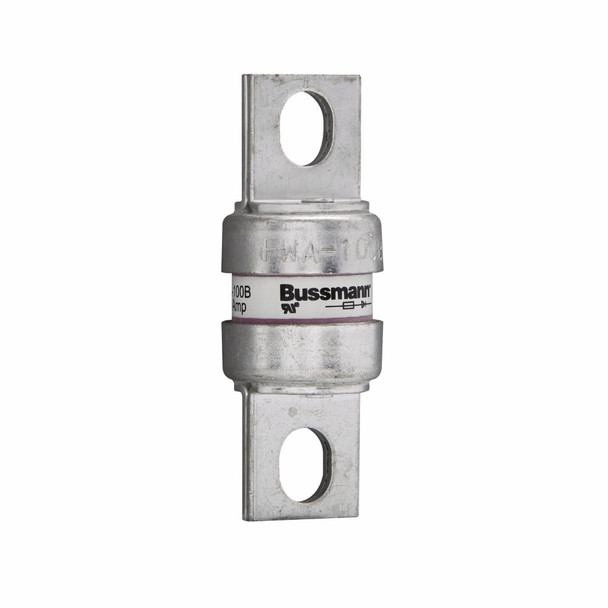

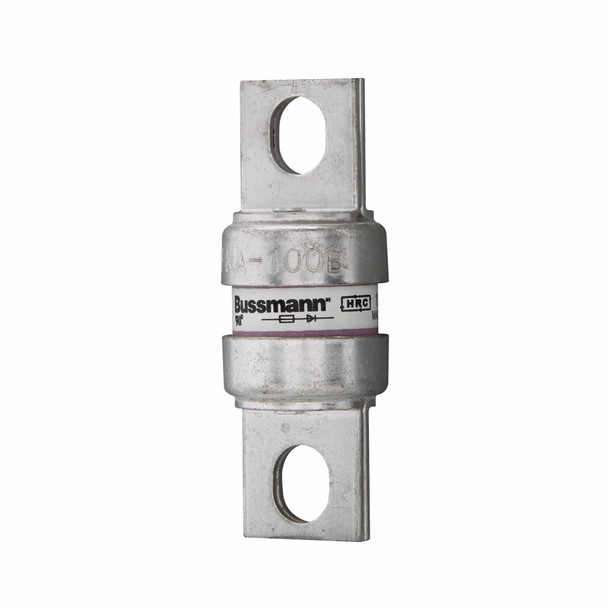

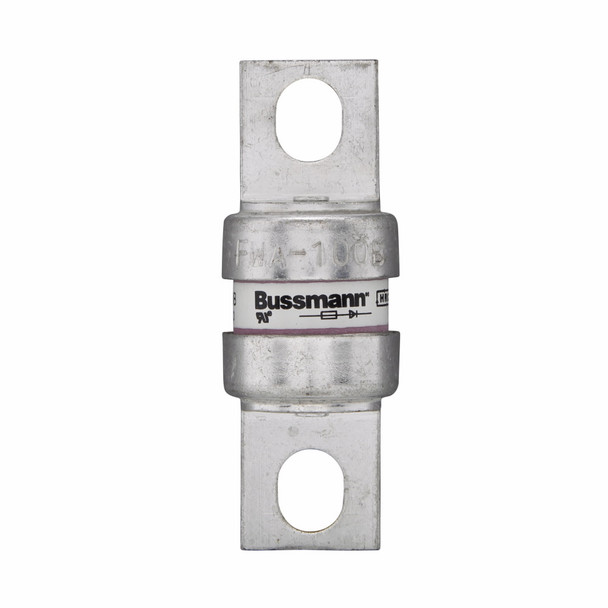

Bussmann FWA-300B High Speed Fuse
Bussmann High Speed Fuse, Fast Acting Semi-Conductor, Series: FWA, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 300 A, 150 VAC, 100 kA Interrupt, 45 to 1000 Hz, Blade End Terminal, Stud Mount, Cylindrical Body, Single Element, Ceramic, 1 in Dia x 2.656 in L Body Size
Additional Description: BUSS-FWA-300B SEMI-COND FUSE 300A 150V AC
Catalog Description: Eaton Bussmann series FWA high speed fuse, 500 Vac/dc (35-800A only), 300A, 200 kAIC Vac (70-1000A), 20 kAIC at 150 Vdc (70-800A), 100 kAIC at 80 Vdc (70-1000A), None, High speed fuse, Blade end X blade end, Stud
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 300 |
| Amperage Rating | 300 A |
| Body Type | Cylindrical |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100 |
| Interrupt Rating | 100 kA |
| Material | Ceramic |
| Mounting type | Stud |
| Rejection/Non-Rejection | Non-Rejection |
| Series | FWA |
| Terminal Type | Blade |
| Terminal Type | Blade End |
| Type | Fast Acting |
| Type | Fast Acting Semi-Conductor |
| Voltage Rating | 150 |
| Voltage Rating | 150 VAC |
