Description

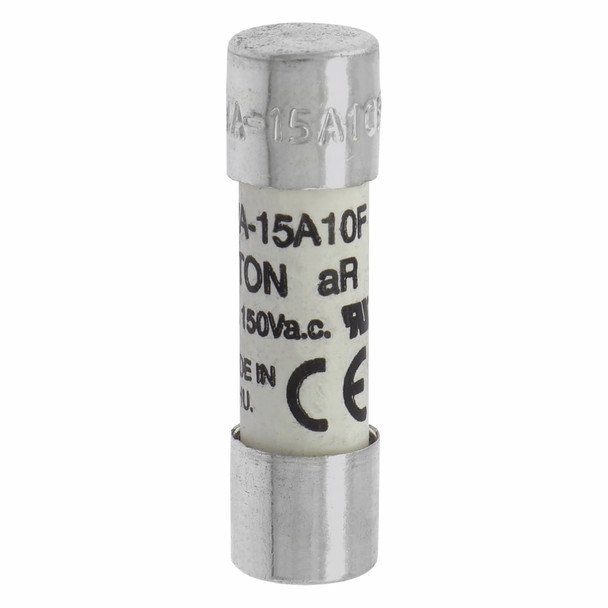

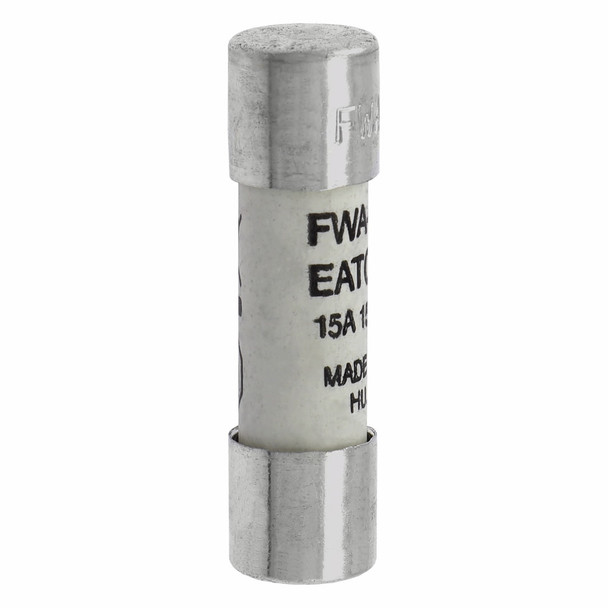

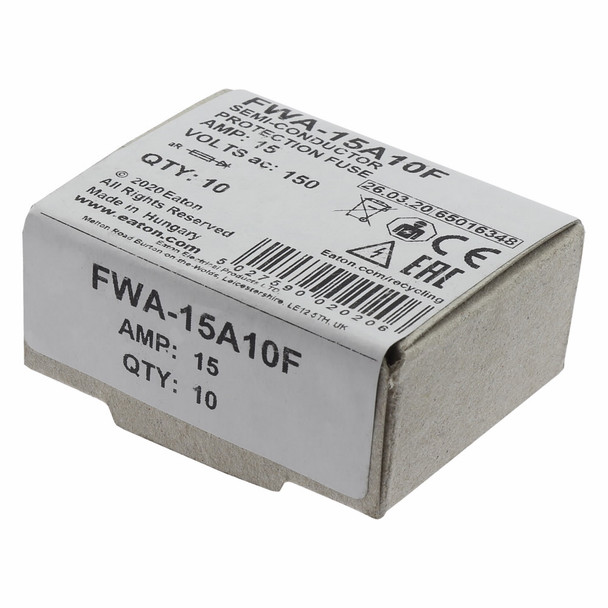

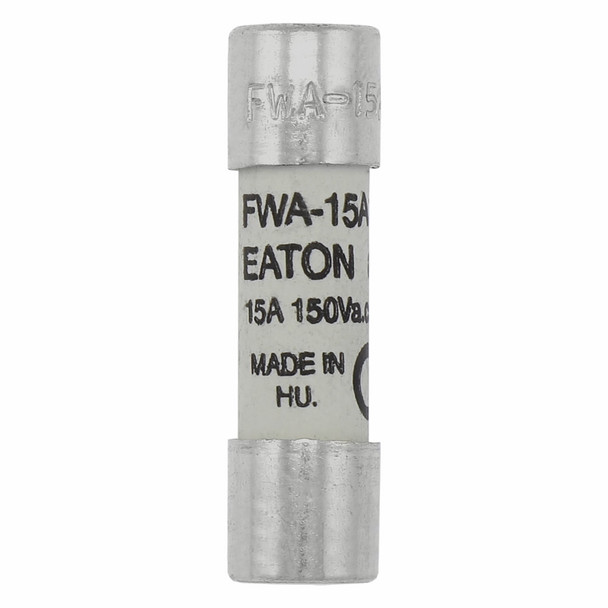

Bussmann FWA-15A10F High Speed Fuse
Bussmann High Speed Fuse, Fast Acting Semi-Conductor, Series: FWA, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 15 A, 150 VAC, 100 kA Interrupt, Class: aR, 45 to 1000 Hz, Ferrule End Terminal, Holder Mount, Cylindrical Body, Single Element, Ceramic, 0.406 in Dia x 1.5 in L Body Size
Additional Description: BUSS-FWA-15A10F SEMI-COND FUSE 15A 150V AC
Catalog Description: Eaton Bussmann series FWA high speed fuse, 500 Vac (0.25-6.3A), 500 Vdc (2-5A), 15A, 100 kAIC, Non Indicating, High speed fuse, Ferrule end X ferrule end
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 15 |
| Amperage Rating | 15 A |
| Body Type | Cartridge |
| Body Type | Cylindrical |
| Class | AR |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100 |
| Interrupt Rating | 100 kA |
| Interrupt Rating | 50/200 |
| Material | Ceramic |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | FWA |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Terminal Type | Ferrule End x Ferrule End |
| Type | Fast Acting |
| Type | Fast Acting North American Style Semiconductor |
| Type | Fast Acting Semi-Conductor |
| Voltage Rating | 150 |
| Voltage Rating | 150 VAC |
